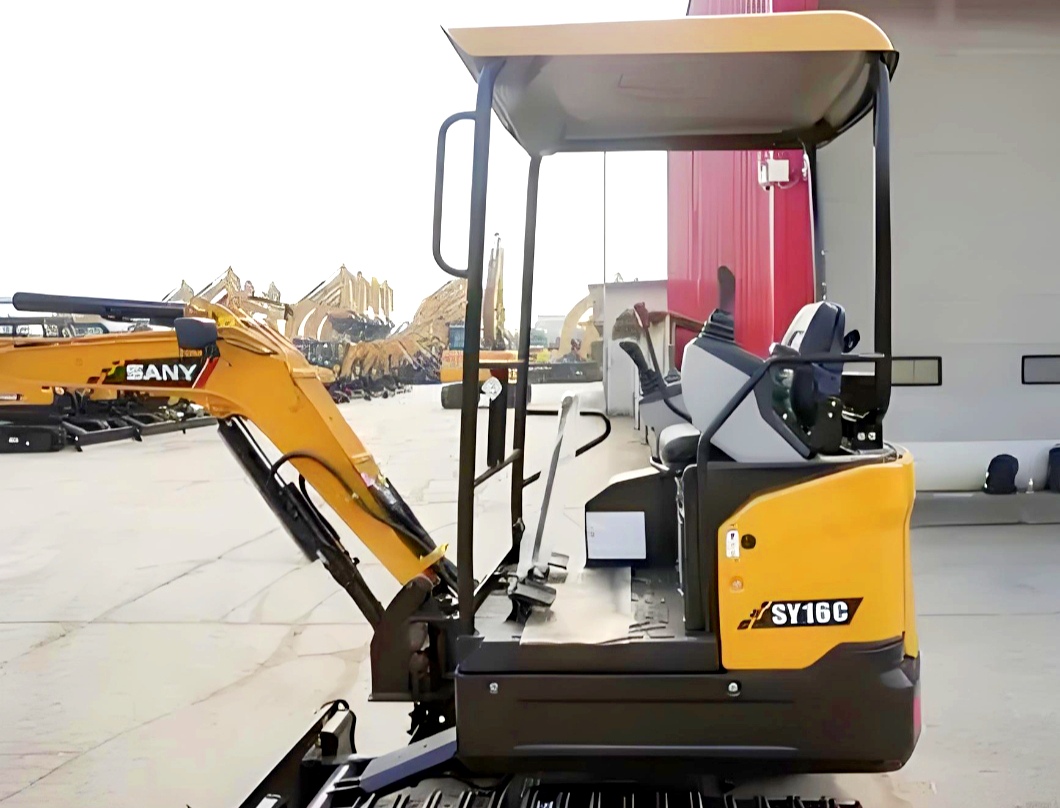

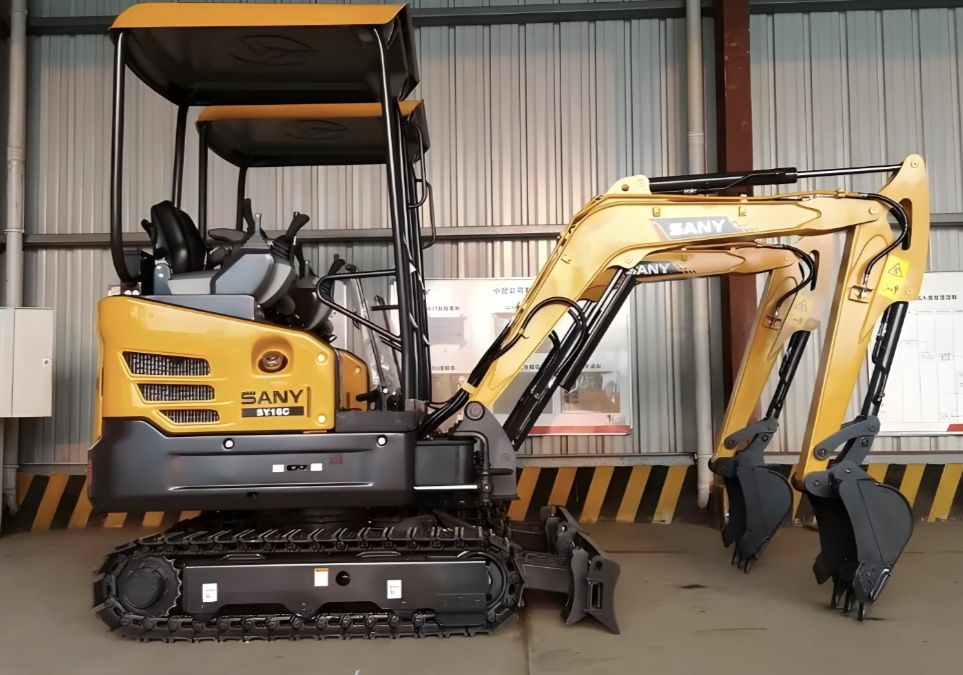

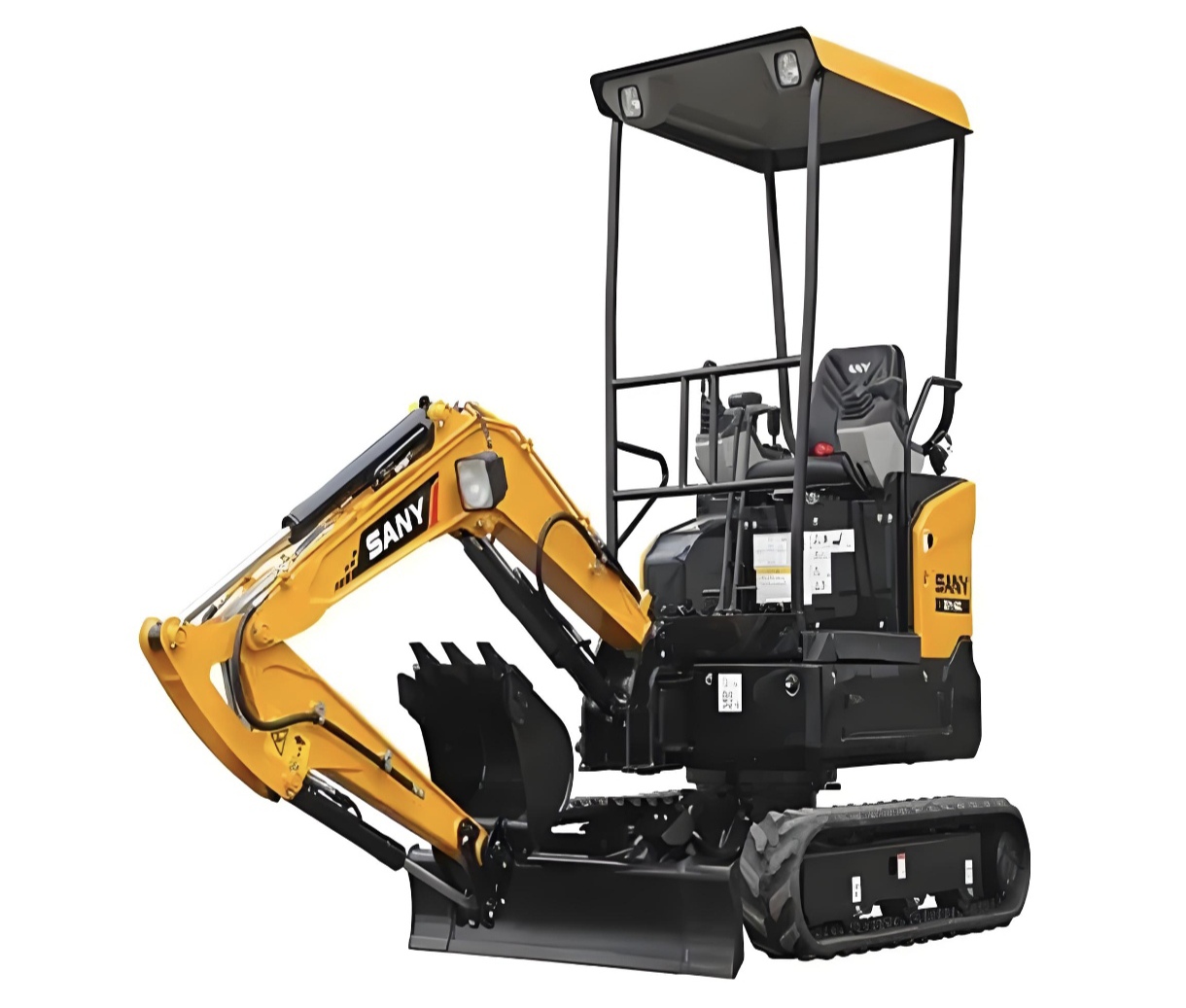

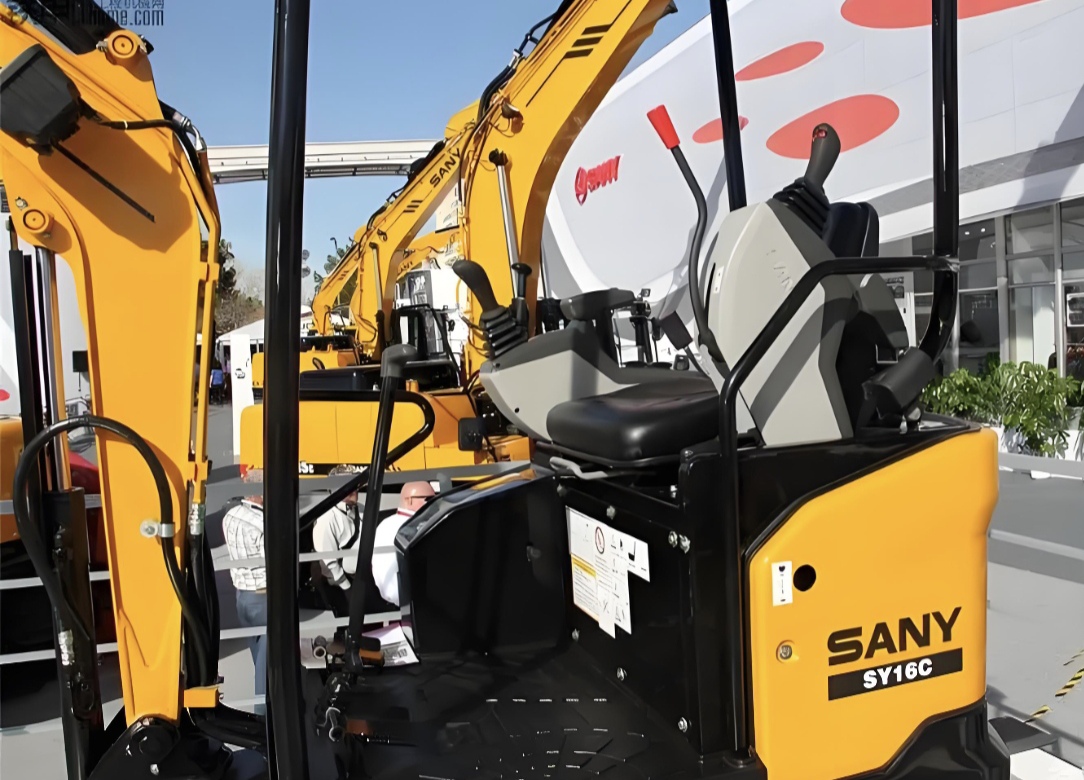

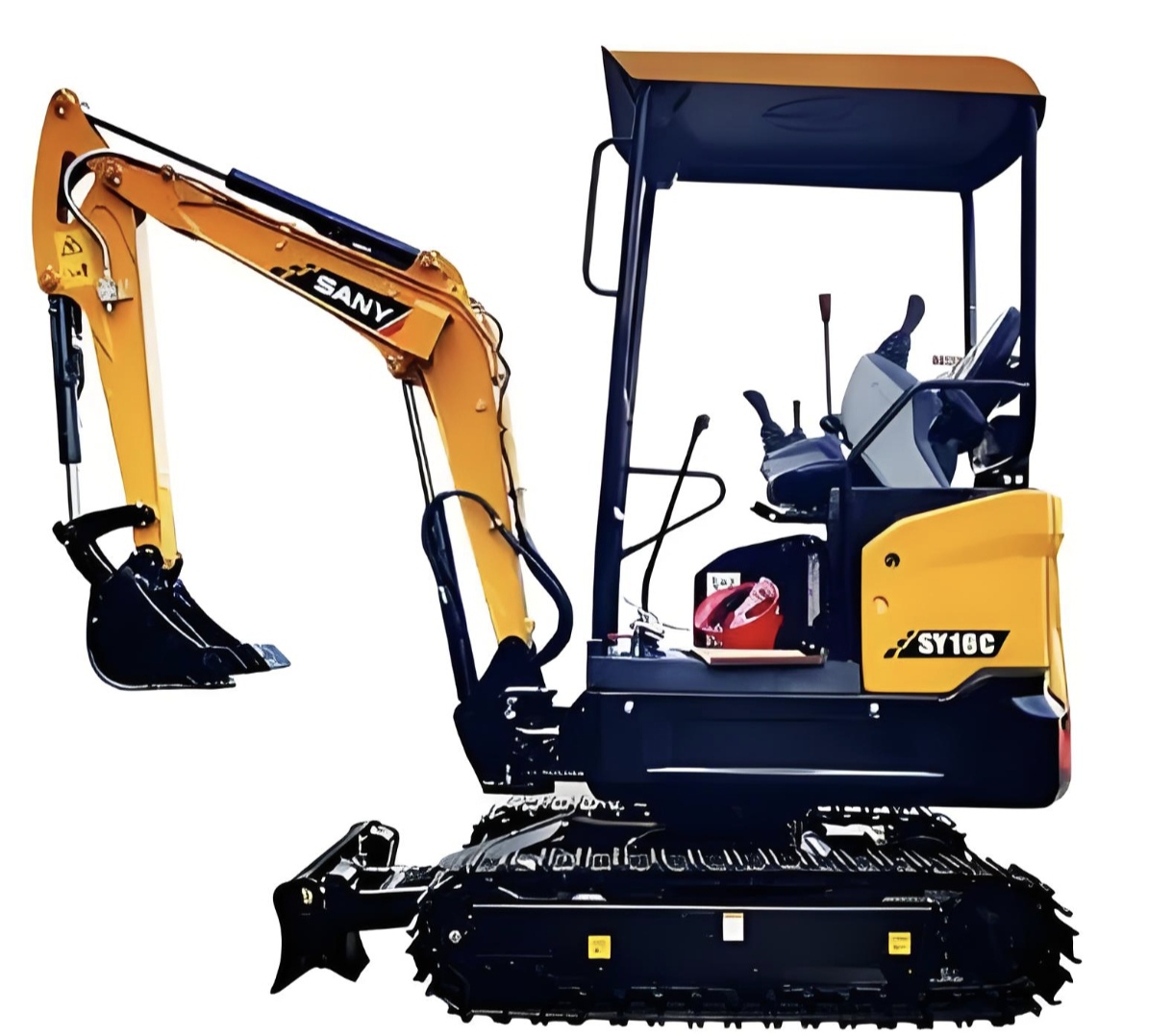

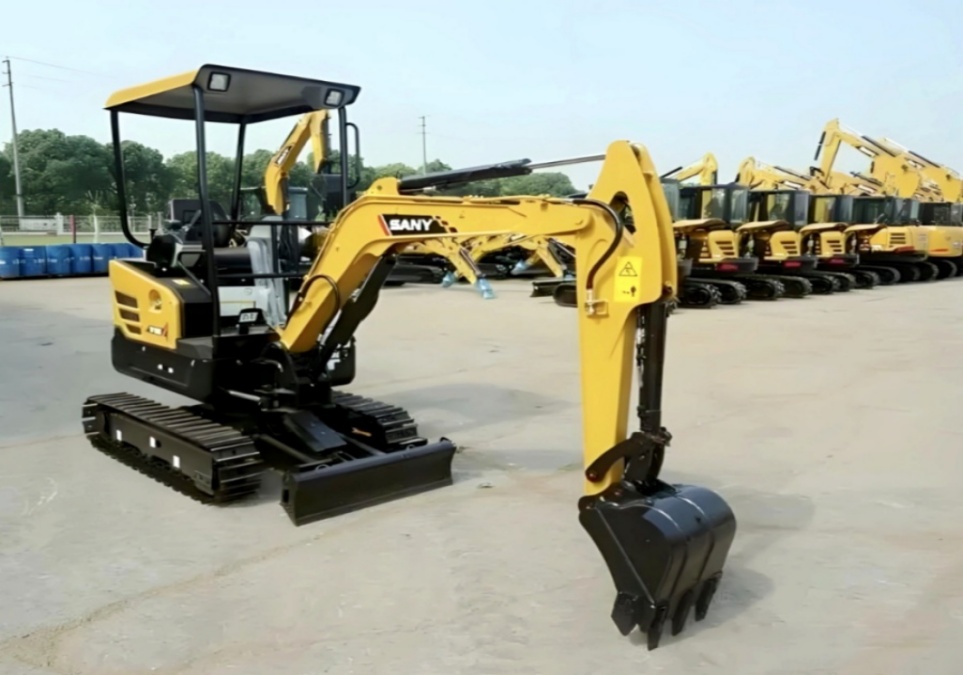

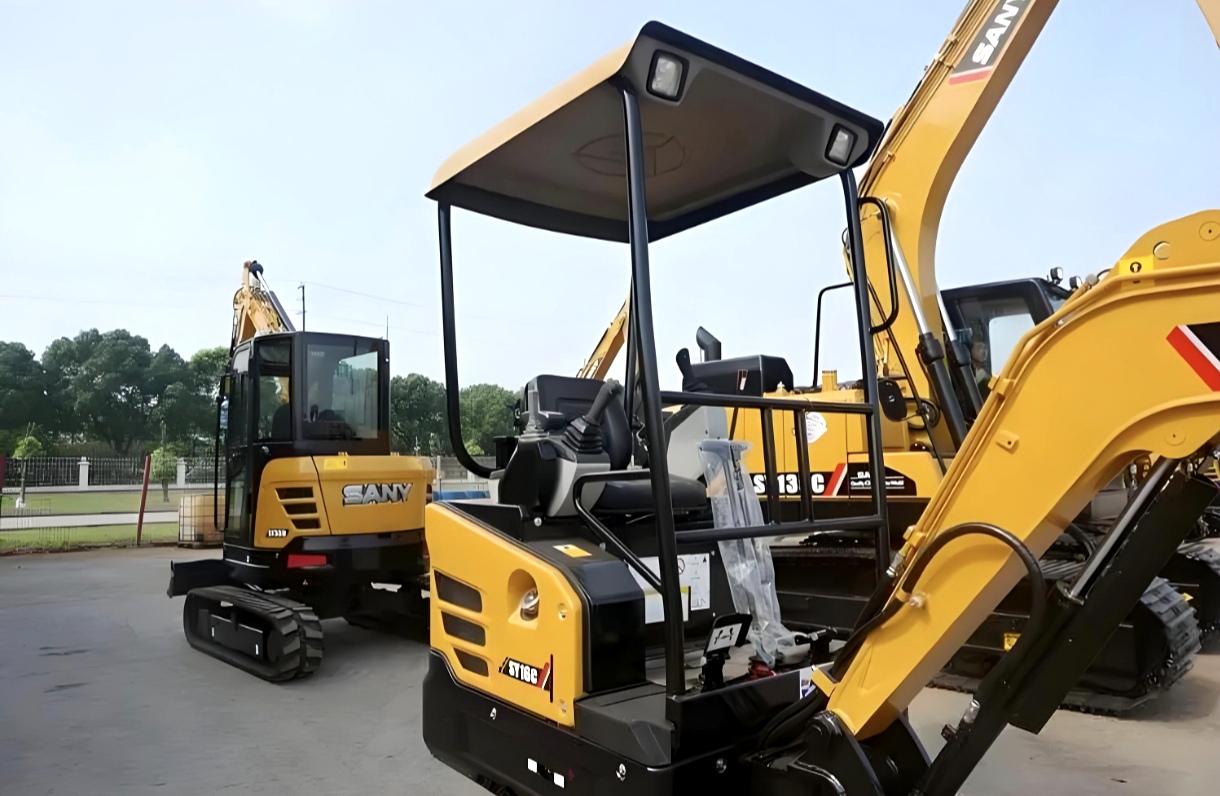

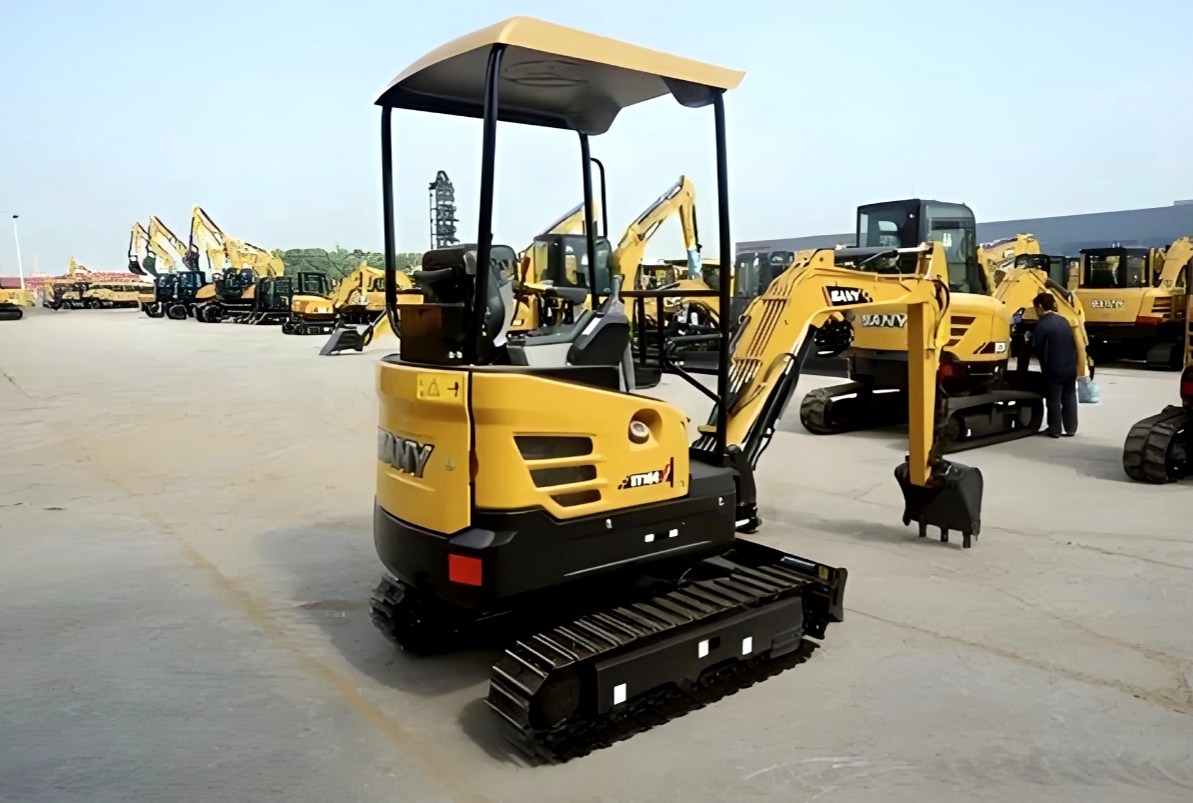

SY16C flexible and efficient multi-faceted expert with good price.

SY16C is a 1-2T level micro excavator product created by Sany Heavy Machinery, which has won the "Engineering Machinery User Satisfaction Award".SY16C has been comprehensively upgraded around "new power", "new styling", and "new technology", with faster speed and higher efficiency,the detailed design is comprehensive, with a variety of accessories and configurations to choose from, achieving multiple uses for one machine, making it a versatile expert in micro excavators.

product details

product description

Product Details

Product Parameters

Overall dimension
L×W×H							3575×980/1350×2420mm
Upper width							980mm
Height of bulldozer board							270mm
Standard track shoe width							230mm
Wheelbase (transportation/operation)							750/1120mm
Min.ground clearance							180
Tail turning radius							920mm
Track grounding length							1225mm
Track length							1585mm

Working Range
Max.eacavator height							3665mm
Max.dumping height							2635mm
Max.digging depth							2360
Max. vertical arm excavation depth							2215mm
Max. digging radius							4000mm
Min.radius							1655mm

Max. height at minimum turning radius							2745mm
The Max. ground clearance for lifting the bulldozer board							310mm
Max. depth of settlement of bulldozer board							320mm
Max.bucket offset							350/595mm

Specification
Machine weight							1935kg
Bucket capacity							0.04m³
Engine							Kubota D1105
Engine power							15.4kW/2400rpm
Main pump flow rate							66L/min
Max.torque							71.4Nm/1600rpm
Displacement							1.123L

Walking part
Supporting wheels on each side							3
Track-width							230mm

Oil And Antifreeze Capacity
Fuel tank							20L
Hydraulic oil tank							21L

Engine							4.5L
Antifreeze							5L

Performance
Speed							4.0/2.7(km/h)
Rotation speed							10rpm
Gradeability							58%
Ground pressure							29.1kpa
Bucket digging farce							16.6kN
Excavating force of boom							10kN
