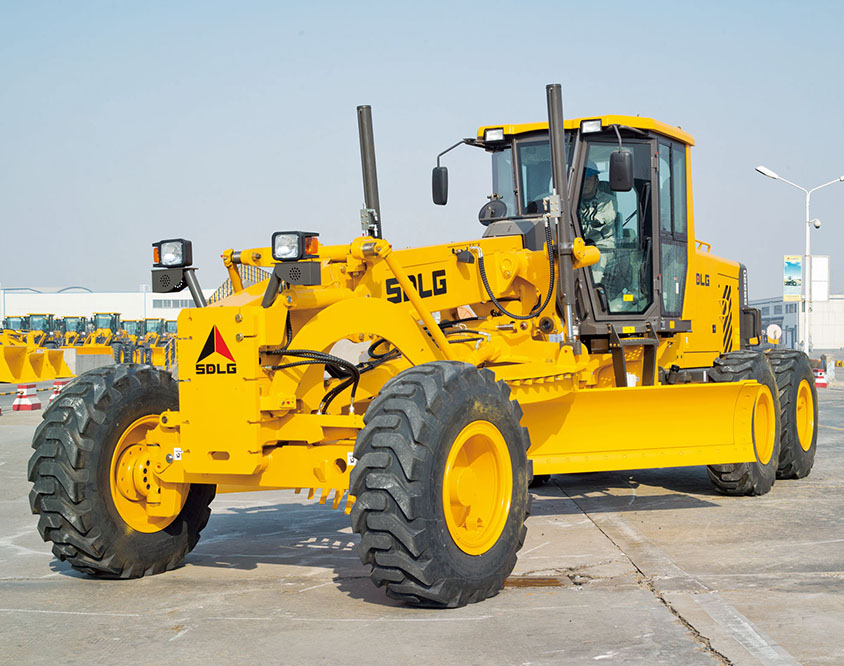

SDLG Top Brand 190HP Grader G9190f Motor Grader for Sale

The top-brand 190HP G9190F Motor Grader is available for sale. This high-performance grader combines 190 horsepower with advanced features, making it perfect for precise grading, road maintenance, and large-scale construction projects.

G9190F

Product Introduction

The G9190F is an advanced motor grader developed by SDLG, leveraging cutting-edge European technology to deliver exceptional performance in various applications. This machine is distinguished by its high speed, efficiency, and precision, making it a versatile tool for a broad range of tasks. Designed to meet the demands of diverse construction and engineering projects, the G9190F excels in multiple functions, including ground leveling, grooving, and slope scraping.

Ground leveling is a critical function for preparing surfaces for further construction or paving, and the G9190F handles this task with remarkable accuracy, ensuring a smooth and even surface. In addition to leveling, the grader is capable of precise grooving, which is essential for creating trenches or channels in the ground for utilities or drainage. The G9190F also performs slope scraping efficiently, removing excess material from inclined surfaces to achieve the desired gradient.

For broader applications, the G9190F is equipped to handle bulldozing tasks, moving large quantities of material across a site to clear debris or reshape terrain. In snowy conditions, the grader’s plowing capabilities are invaluable for maintaining road safety and accessibility. The machine’s ability to loosen and compact materials further enhances its versatility, making it suitable for preparing soil and other materials for construction or landscaping.

Material arrangement and mixing are additional functions where the G9190F shines, allowing for even distribution of materials and thorough mixing for various construction needs. Its versatility makes it widely applicable in a variety of construction conditions, including road construction, airport maintenance, defense engineering projects, mining operations, water conservancy efforts, and farmland improvement. The G9190F's robust design and advanced features ensure it performs reliably and effectively across these diverse applications, making it an essential tool for modern construction and engineering tasks.

Product parameters

1. Parameter

2. Dimension

3.Engine

4.Transmission system

5.Steering system

6. Steering system

7. Oil filling amount

010203

Total mass (kg)	15800	Minimum steering radius (m)	7.6
Weight on front axle (kg)	4700	Blade lifting height (mm)	445
Weight on rear axle (kg)	11100	Blade cutting depth (mm)	787
Maximum inclination angle of front wheel (°)	±18	Blade cutting angle (forward) (°)	47
Maximum swinging angle of front axle (°)	±16	Blade cutting angle (backward) (°)	5
Maximum steering angle of front wheel (°)	±50	Blade tilt angle (°)	90
Steering angle of frame joint (°)	±23	Side shifting distance of blade (mm)	left 673 right 673
Cutter diameter (mm)	1626	Maximum traction force (kN)	82
Blade specification (mm)	396261025	Blade slewing angle (°)	360
Speed of forward I (km/h)	5	Speed of forward Ⅱ (km/h)	8.5
Speed of forward Ⅲ (km/h)	11.5	Speed of forward Ⅳ (km/h)	20
Forward Ⅴ(km/h)	25	Forward Ⅵ(km/h)	40
Forward Ⅶ(km/h)	-	Forward Ⅷ(km/h)	-
Speed of reverse Ⅰ (km/h)	5	Speed of reverse II (km/h)	11.5
Speed of reverse Ⅲ (km/h)	25	Speed of reverse IV (km/h)	-
Speed of reverse V (km/h)	-	Speed of reverse Ⅵ (km/h)	-
Altitude（m）	-	Wading depth（mm）	-
Ambient temperature（℃）	-	-	-

Overall length (mm)	8975	Wheel track	-
Overall width (mm)	2710	wheelbase（mm）	6480
Overall height (mm)	3240	Tandem center distance (mm)	1538
Ground clearance of front axle (mm)	610	Ground clearance of rear axle (mm)	430

Engine model/Drive Motor Model	BF6M1013EC	Number of cylinders	6
Engine type	In-line、 water-cooled、 four-stroke、 direct injection	Bore/stroke（mm）	108/130
Engine power (KW)	146	Rated power (KW)	146
Minimum fuel consumption(g/kW.h)	210	Rated rotation speed (r/min)	2100
Maximum torque (N.m)/rotation speed (r/min)	710/1500	Displacement (ml)	7146
Emission standard	EC Stage Ⅱ& EPA Tier Ⅱ	-	-

Model of hydraulic converter	ZFW340	type of hydraulic converter	Single-stage single-phase ternary part, which is connected with the gearbox
Diameter of hydraulic converter circulating circle (mm)	340	Torque ratio at hydraulic converter stall	2.14
Transmission model	6WG200	Transmission type	Counter-shaft power shift
Operation mode of transmission	electro-hydraulic operation	Oil pressure of transmission shifting operation (MPa)	1.6～1.8
Shifting gears	-	Gear ratio of transmission forward I	5.991
Gear ratio of transmission forward Ⅱ	3.447	Gear ratio of transmission forward Ⅲ	2.596
Gear ratio of transmission forward Ⅳ	1.494	Gear ratio of transmission forward Ⅴ	1.179
Gear ratio of transmission forward Ⅵ	0.678	Gear ratio of transmission forward Ⅶ	-
Gear ratio of transmission forward Ⅷ	-	Gear ratio of transmission reverse I	5.991
Gear ratio of transmission reverse Ⅱ	2.596	Gear ratio of transmission reverse Ⅲ	1.179
Gear ratio of transmission reverse Ⅳ	-	Total reduction ratio	17.779
Final ratio of drive axle	3.7	Wheel reduction ratio of drive axle	3.26
Tandem reduction ratio	1.474	Tyre size	17.5-25-16PR
Rim	14.00/1.5-25	Tyre pressure of front axle (MPa)	0.25±0.01
Tyre pressure of rear axle (MPa)	0.25±0.01	service brake press（MPa）	10.3±0.5

Type of hydraulic pressure	Open-type system	Main pump model	Gear pump(jinan)
Main pump displacement (ml/r)	25	System pressure (Mpa)	18
Setting pressure of safety valve of Husco multi-way valve (MPa)	18±0.35	Setting pressure of overload valve of Husco multi-way valve (MPa)	-
Nominal flow rate of Husco multi-way valve (L/min)	65	Rotary valve	Rotary valve
Specification of front wheel tilt cylinder	80*45-169-407.5	Specification of front wheel steering cylinder	63*45-315-520
Specification of locking cylinder	80*60-63.5-38	Specification of slewing cylinder	63*35-255-505
Specification of blade sideshift cylinder	63*45-1000-1440	Specification of blade swinging cylinder	63*45-630-955
Specification of blade lifting cylinder	63*45-1050-605	Specification of steering articulated cylinder	90*45-322-613
Specification of blade angle-varying cylinder	-	-	-

Type of steering system

Diesel filling capacity of fuel tank	270L	Gear oil filling capacity of rear axle housing	28L
Oil tank filling capacity	127L	Gear oil filling capacity of rear axle tandem	23L
Oil filling capacity of engine oil pan	26L	Gear oil filling capacity of rear axle wet brake oil chamber	-
Filling capacity of water radiator antifreeze coolant	30L	Filling capacity of transmission oil	28L
