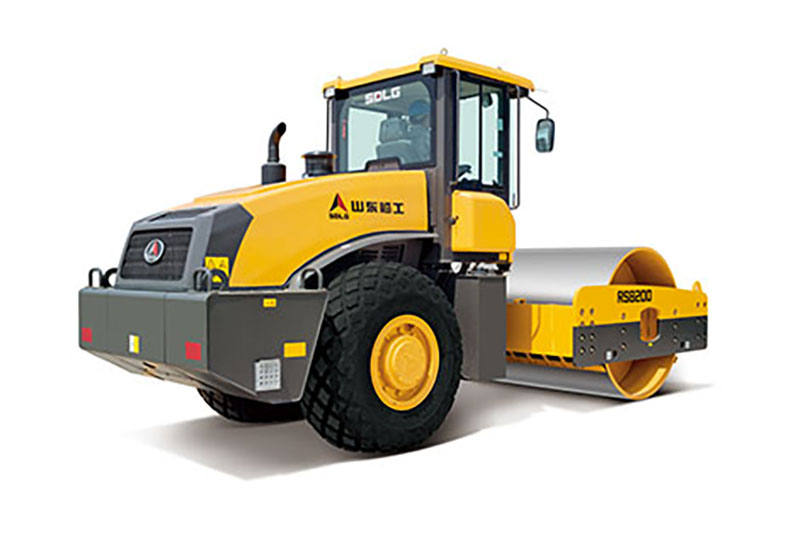

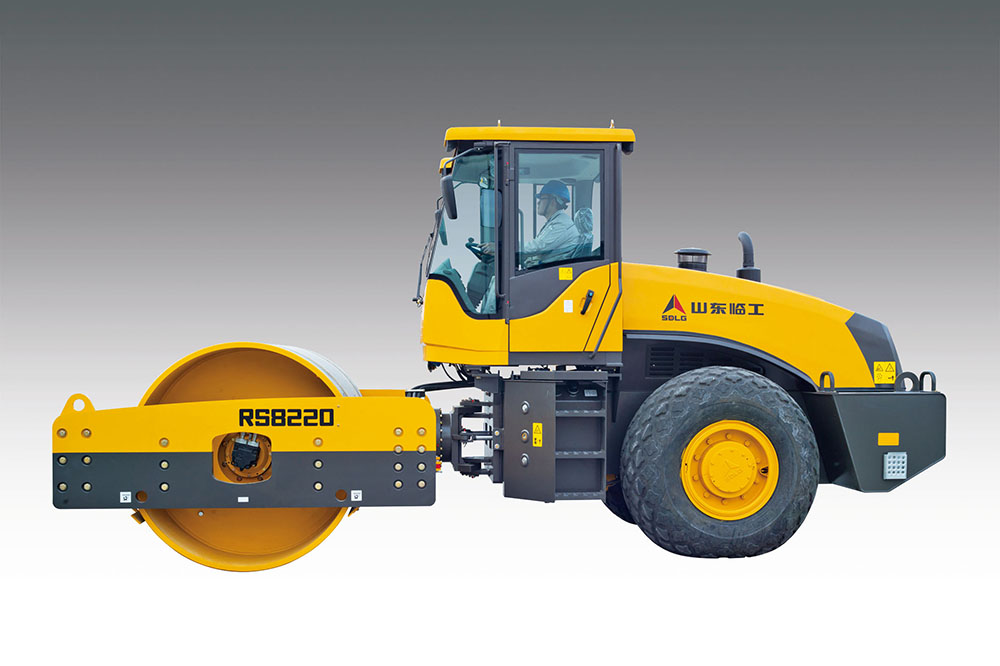

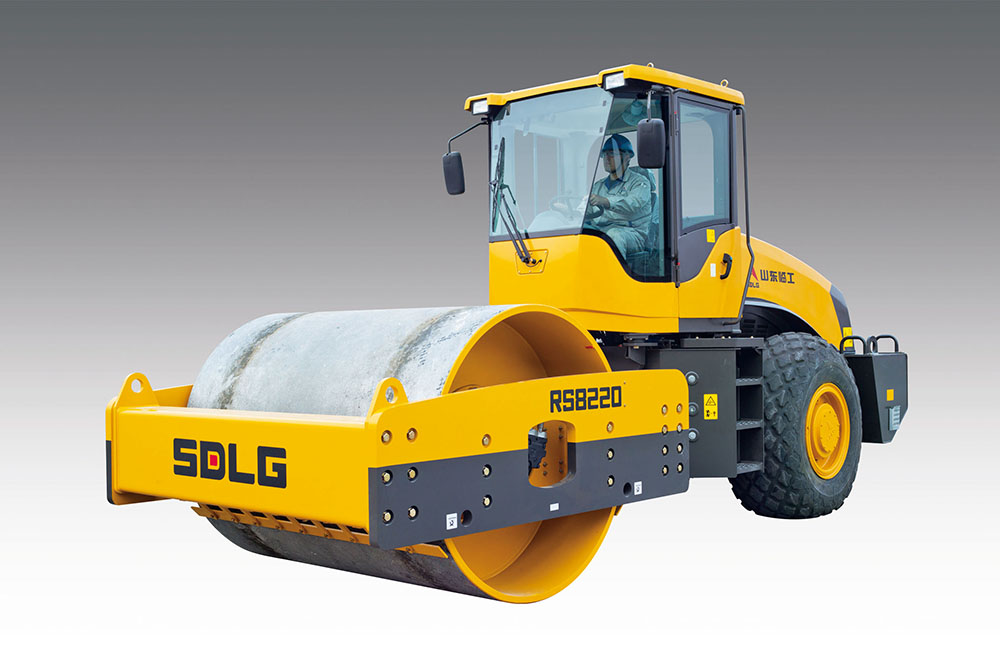

SDLG RS8200H Road roller 20-ton single drum
RS8200H
Product parameters
Nominal amplitude (mm) |
2.0/1.0 |
Minimum outside steering radius (mm) |
6389 |
Vibration frequency (Hz) |
28/33 |
Maximum gradability |
30% |
Exciting force (kN) |
360/249 |
Static line load (N/cm) |
449 |
Forward I(km/h) |
0~2.6 |
Forward Ⅱ(km/h) |
0~5.0 |
Forward Ⅲ(km/h) |
0~10.5 |
Forward Ⅳ(km/h) |
- |
Reverse I (km/h) |
0~2.6 |
Reverse II(km/h) |
0~5.0 |
Reverse III(km/h) |
- |
Reverse IV(km/h) |
- |
Altitude(m) |
- |
Ambient temperature(℃) |
- |
Wading depth(mm) |
- |
- |
- |
Overall length (mm) |
6295 |
Vibration pump width (mm) |
2150 |
Overall width (mm) |
2300 |
Wheel track |
- |
Overall height (mm) |
3180 |
wheelbase(mm) |
3318 |
Minimum ground clearance (mm) |
400 |
Total mass (kg) |
20000 |
Swing angle(°) |
±12 |
Work quality (before/after) (kg): |
(10000/10000) |
Engine model/Drive Motor Model |
WP6G175E201 |
Number of cylinders |
6 |
Engine type |
In-line、 water-cooled、 four-stroke、 direct injection |
Bore/stroke(mm) |
105/130 |
Engine power (KW) |
129 |
Minimum fuel consumption(g/kW.h) |
≤215 |
Rated engine speed(r/min) |
2000 |
Maximum torque (N.m)/rotation speed (r/min) |
680/1300-1500 |
Displacement (ml) |
6750 |
Emission standard |
GB 20891-2007 China II emission |
Clutch type |
Single-disc dry clutch |
Specification of driven disc |
380 |
Separating force (N) |
3500 |
Pressing force (N) |
13.3~15.7KN |
Separating stroke (mm) |
12 |
Transmission type |
mechanical shift |
Shifting gears |
forward 3 reverse 2 |
Gear ratio of transmission forward I |
8.1 |
Gear ratio of transmission forward Ⅱ |
4.148 |
Gear ratio of transmission forward Ⅲ |
1.961 |
Gear ratio of transmission reverse I |
8.185 |
Gear ratio of transmission reverse Ⅱ |
4.140 |
Gear ratio of transmission reverse Ⅲ |
- |
Model of variable-speed pump |
- |
Working pressure of shifting(MPa) |
- |
Main drive type |
First reduction of spiral bevel gear |
Main drive reduction ratio |
5.286 |
Wheel reduction type |
One-stage planetary reduction |
Wheel reduction ratio |
4.941 |
Type of drive axle |
Rear wheel drive |
Tyre size |
23.1-26-12PR |
Rear tyre pressure(MPa) |
0.2 |
Type of foot brake |
Air-over-oil caliper disc brake |
Brake pressure (MPa) |
0.6~0.8 |
Parking brake type |
Manual drum brake |
- |
- |
Type of steering system |
Open-type system |
Steering pump model |
CBGj1016(dextrorotation) |
Steering pump displacement |
16 ml/r |
Steering cylinder - bore x rod diameter x stroke |
100×45×282-577 |
Steering gear |
BZZ1-500 |
Steering gear displacement |
500 ml/r |
Steering angle (°) |
±35° |
Working pressure of steering system(Mpa) |
14MPa |
Vibration, walking hydraulic system
Vibration mode |
Closed-type system |
Vibration system manufacturer |
Lind |
Vibration pump model |
HPV09-A2-075RE05 |
Vibration pump displacement (mL/r) |
75 ml/r |
Vibrating motor model |
HMF09-A2-075 |
Vibrating motor displacement (mL/r) |
75 ml/r |
Model of walking pump |
- |
Displacement of walking pump (ml/r) |
- |
Model of front travel motor |
- |
Displacement of front travel motor (ml/r) |
- |
Model of rear travel motor |
- |
Displacement of rear travel motor (ml/r) |
- |
Reducer model |
- |
Reducer gear ratio |
- |
Fuel filling capacity(L) |
270 |
Oil filling capacity of axles (main drive and wheel reducer)(L) |
16+2×5 |
Hydraulic oil filling capacity(L) |
60 L |
Transmission oil filling capacity(L) |
9+6 |
Engine oil filling capacity(L) |
16 |
Oil filling capacity of braking system(L) |
2 |
Filling capacity of water radiator antifreeze coolant |
23 |
Gear oil filling capacity of vibrating drum vibration chamber |
18 |
