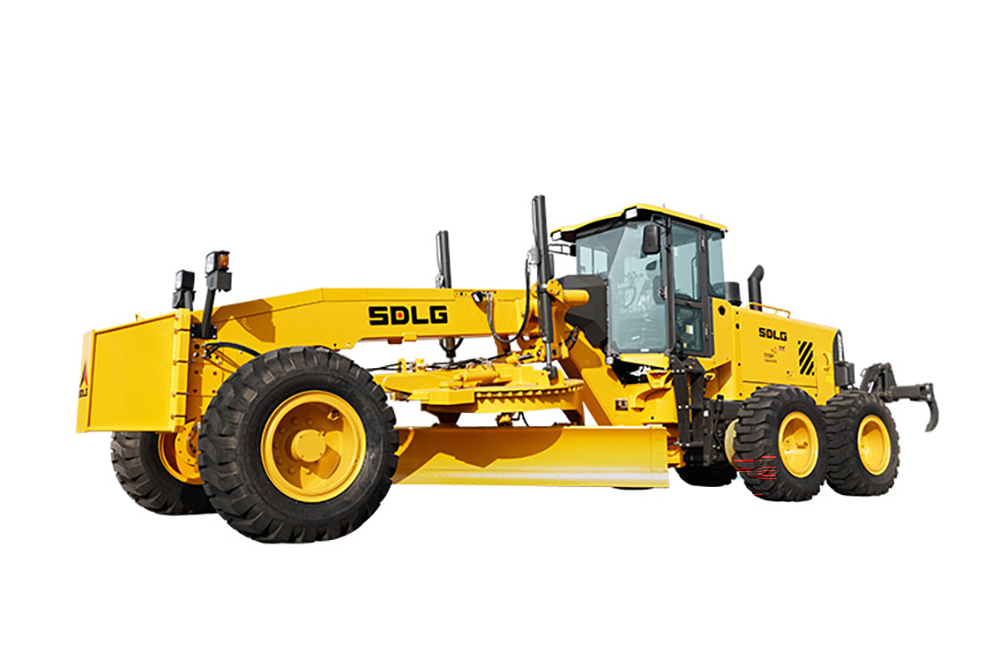

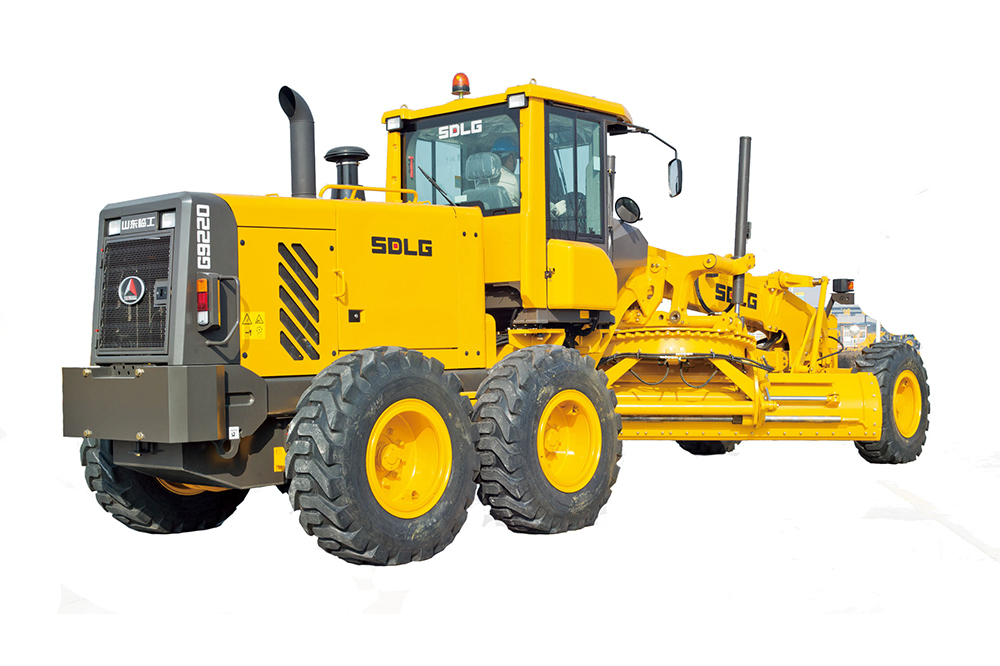

SDLG Motor Grader G9220f with Z-F 6wg200 Gearbox

The high-quality 220HP SDLG G9220F Motor Grader features robust performance and versatility. It includes essential spare parts and attachments, making it ideal for precise grading, road construction, and maintenance tasks.

G9220f

Product Introduction

The G9220F grader is a remarkable piece of equipment known for its exceptional performance, stylish design, and outstanding operational flexibility. Its design not only enhances aesthetic appeal but also contributes to the grader's functional efficiency. The machine features advanced engineering that allows for highly accurate and flexible movement, which is crucial for achieving precise grading and construction results.

One of the key strengths of the G9220F is its ability to handle a wide range of construction tasks with ease. It is particularly effective in subgrade and pavement construction, where it plays a vital role in creating a smooth and stable foundation for roadways and other structures. The grader’s capability to build and maintain slopes is another significant advantage, ensuring that drainage and grading meet the required specifications. This feature is especially useful for creating proper drainage and preventing erosion in various construction environments.

In addition to its primary grading functions, the G9220F excels in mixing road mixtures. This process is essential for producing high-quality road surfaces that can withstand heavy traffic and adverse weather conditions. The grader’s versatility extends to snow removal, where it helps maintain road safety and accessibility during winter months by effectively clearing snow from roads and pathways.

The G9220F is also adept at pushing loose materials, which is useful for clearing debris and preparing surfaces for further construction activities. Its maintenance capabilities for dirt and gravel roads ensure that these surfaces remain in good condition, reducing the need for frequent repairs and extending the lifespan of the roads. Overall, the G9220F grader combines excellent performance with convenience and versatility, making it an invaluable tool for various grading, construction, and maintenance tasks. Its comprehensive features and reliable operation make it a top choice for professionals in the construction industry.

Product parameters

1. Parameter

2. Dimension

3.Engine

4.Transmission system

5.Steering system

6. Steering system

7. Oil filling amount

010203

Total mass (kg)	16500	Minimum steering radius (m)	7.6
Weight on front axle (kg)	4800	Blade lifting height (mm)	445
Weight on rear axle (kg)	11700	Blade cutting depth (mm)	787
Maximum inclination angle of front wheel (°)	±18	Blade cutting angle (forward) (°)	47
Maximum swinging angle of front axle (°)	±16	Blade cutting angle (backward) (°)	5
Maximum steering angle of front wheel (°)	±50	Blade tilt angle (°)	90
Steering angle of frame joint (°)	±23	Side shifting distance of blade (mm)	left 673 right 673
Cutter diameter (mm)	1626	Maximum traction force (kN)	87
Blade specification (mm)	426761025	Blade slewing angle (°)	360
Speed of forward I (km/h)	5	Speed of forward Ⅱ (km/h)	9
Speed of forward Ⅲ (km/h)	12	Speed of forward Ⅳ (km/h)	20.5
Forward Ⅴ(km/h)	25.5	Forward Ⅵ(km/h)	39
Forward Ⅶ(km/h)	-	Forward Ⅷ(km/h)	-
Speed of reverse Ⅰ (km/h)	5	Speed of reverse II (km/h)	12
Speed of reverse Ⅲ (km/h)	25.5	Speed of reverse IV (km/h)	-
Speed of reverse V (km/h)	-	Speed of reverse Ⅵ (km/h)	-
Altitude（m）	-	Wading depth（mm）	-
Ambient temperature（℃）	-	-	-

Overall length (mm)	9235	Wheel track	-
Overall width (mm)	2710	wheelbase（mm）	6480
Overall height (mm)	3240	Tandem center distance (mm)	1538
Ground clearance of front axle (mm)	610	Ground clearance of rear axle (mm)	430

Engine model/Drive Motor Model	BF6M1013ECP	Number of cylinders	6
Engine type	In-line、 water-cooled、 four-stroke、 direct injection	Bore/stroke（mm）	108/130
Engine power (KW)	165	Rated power (KW)	165
Minimum fuel consumption(g/kW.h)	210	Rated rotation speed (r/min)	2100
Maximum torque (N.m)/rotation speed (r/min)	819/1550	Displacement (ml)	7146
Emission standard	Meeting the requirements of EC Stage II & EPA Tier II	-	-

Model of hydraulic converter	ZFW340	type of hydraulic converter	Single-stage single-phase ternary part, which is connected with the gearbox
Diameter of hydraulic converter circulating circle (mm)	340	Torque ratio at hydraulic converter stall	2.14
Transmission model	6WG200	Transmission type	Counter-shaft power shift
Operation mode of transmission	electro-hydraulic operation	Oil pressure of transmission shifting operation (MPa)	1.6～1.8
Shifting gears	First six, last three	Gear ratio of transmission forward I	5.991
Gear ratio of transmission forward Ⅱ	3.447	Gear ratio of transmission forward Ⅲ	2.596
Gear ratio of transmission forward Ⅳ	1.494	Gear ratio of transmission forward Ⅴ	1.179
Gear ratio of transmission forward Ⅵ	0.678	Gear ratio of transmission forward Ⅶ	-
Gear ratio of transmission forward Ⅷ	-	Gear ratio of transmission reverse I	5.991
Gear ratio of transmission reverse Ⅱ	2.596	Gear ratio of transmission reverse Ⅲ	1.179
Gear ratio of transmission reverse Ⅳ	-	Total reduction ratio	17.779
Final ratio of drive axle	3.7	Wheel reduction ratio of drive axle	3.26
Tandem reduction ratio	1.474	Tyre size	17.5-25-16PR
Rim	14.00/1.5-25	Tyre pressure of front axle (MPa)	0.25±0.01
Tyre pressure of rear axle (MPa)	0.25±0.01	service brake press（MPa）	10.3±0.5

Type of hydraulic pressure	Open-type system	Main pump model	Gear pump(jinan)
Main pump displacement (ml/r)	32	System pressure (Mpa)	21
Setting pressure of safety valve of Husco multi-way valve (MPa)	21.4±0.35	Setting pressure of overload valve of Husco multi-way valve (MPa)	23.4
Nominal flow rate of Husco multi-way valve (L/min)	65	Rotary valve	Mico Rotary valve
Specification of front wheel tilt cylinder	100*50-169-473	Specification of front wheel steering cylinder	63*45-340-577
Specification of locking cylinder	80*60-63.5-38	Specification of slewing cylinder	80*35-275-507
Specification of blade sideshift cylinder	90*50-1346-1794	Specification of blade swinging cylinder	90*50-635-900
Specification of blade lifting cylinder	90*50-1205-595	Specification of steering articulated cylinder	110*50-303-610
Specification of blade angle-varying cylinder	100*50-260.5-562	-	-

Type of steering system

Diesel filling capacity of fuel tank	270	Gear oil filling capacity of rear axle housing	28
Oil tank filling capacity	127	Gear oil filling capacity of rear axle tandem	23*2
Oil filling capacity of engine oil pan	26	Gear oil filling capacity of rear axle wet brake oil chamber	-
Filling capacity of water radiator antifreeze coolant	30	Filling capacity of transmission oil	28
