SDLG LG933L Loader high-quality wheel loader

The SDLG L989F is a large tonnage front-end loader from China, featuring an 8-ton capacity and a 4.5 cubic meter bucket. Equipped with a Tier 3 hydraulic transmission system, this heavy-duty wheel loader is designed for high-performance and durability. It’s ideal for a variety of demanding construction and material handling tasks, offering efficient operation and reliable performance.

LG933L

Product Introduction

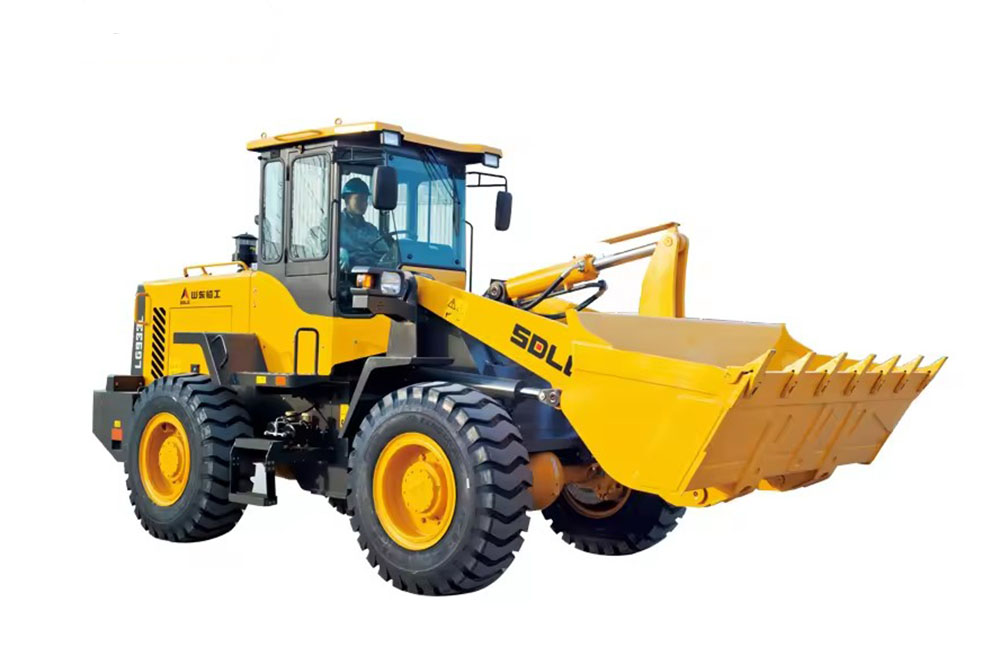

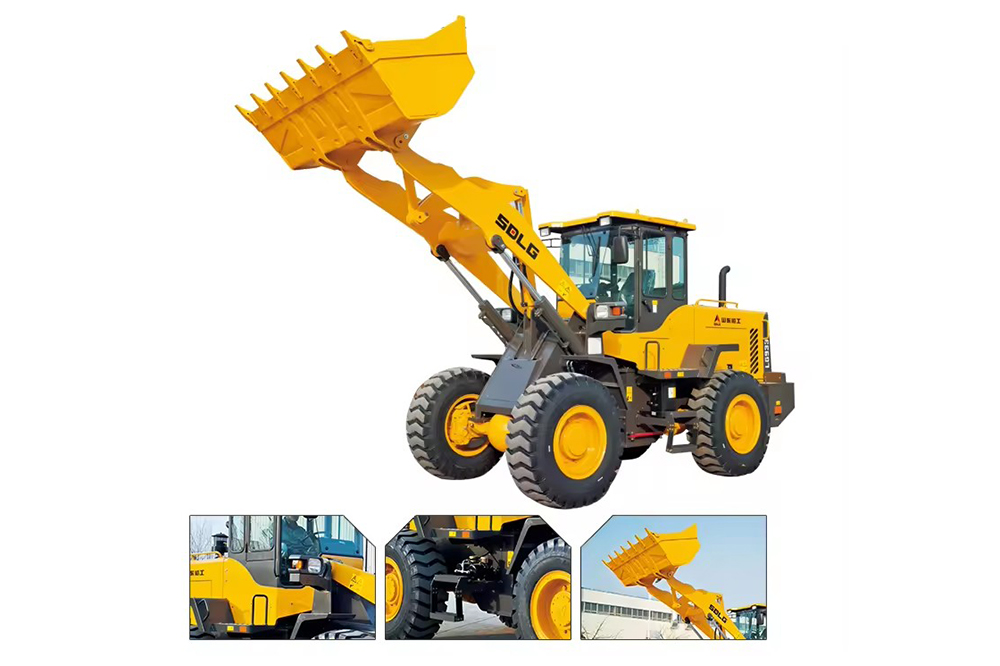

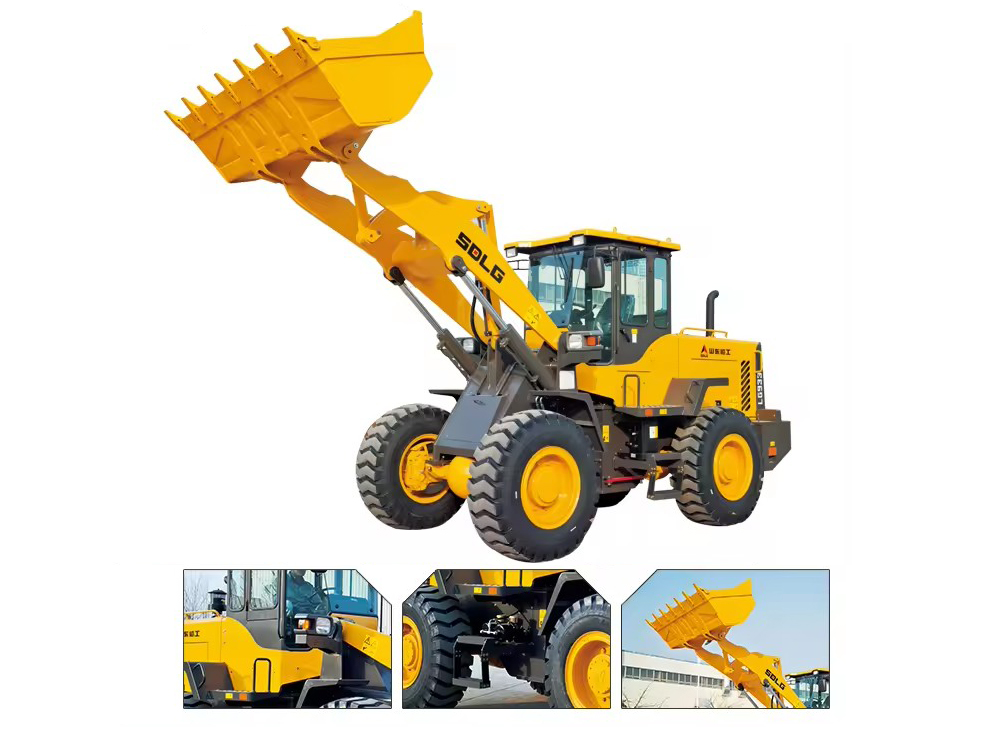

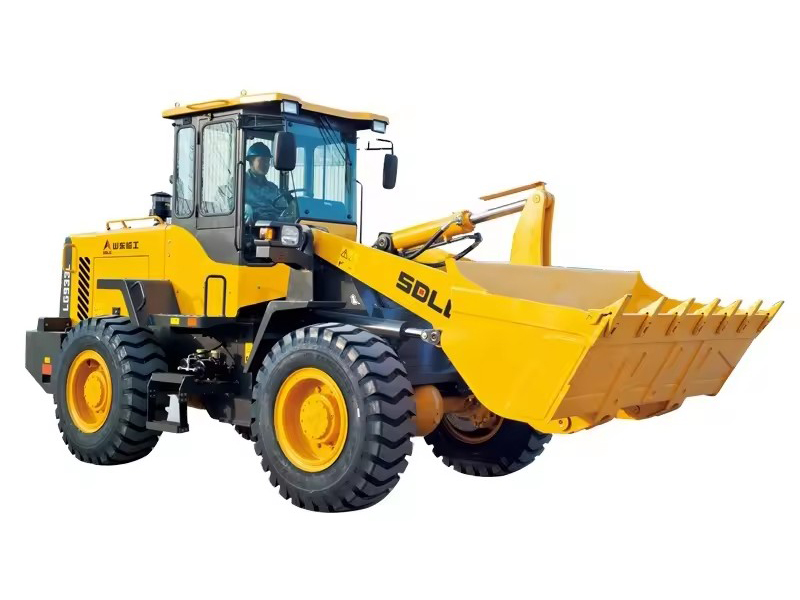

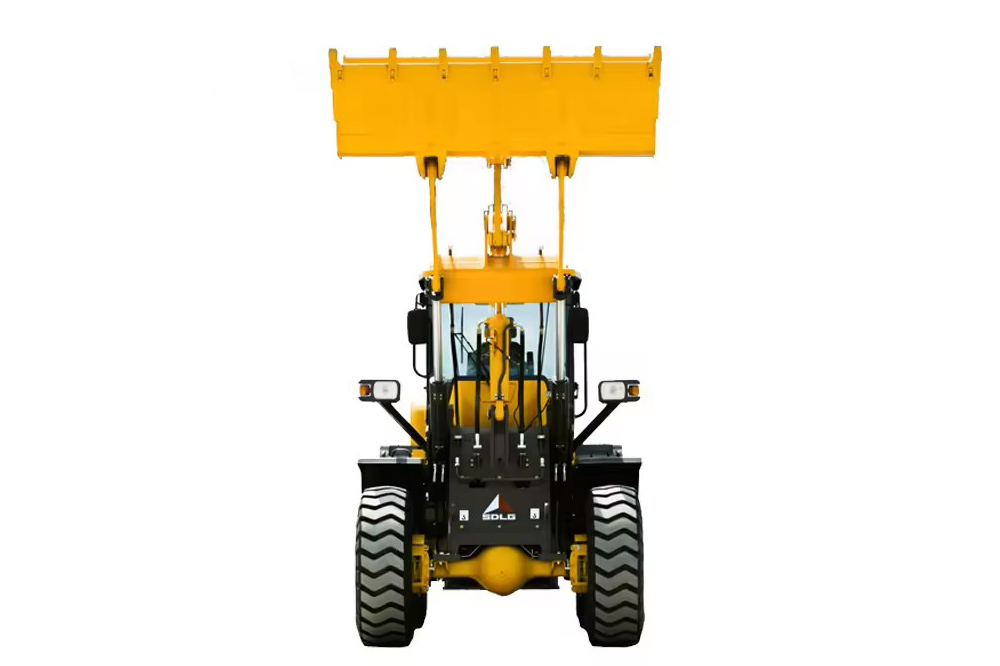

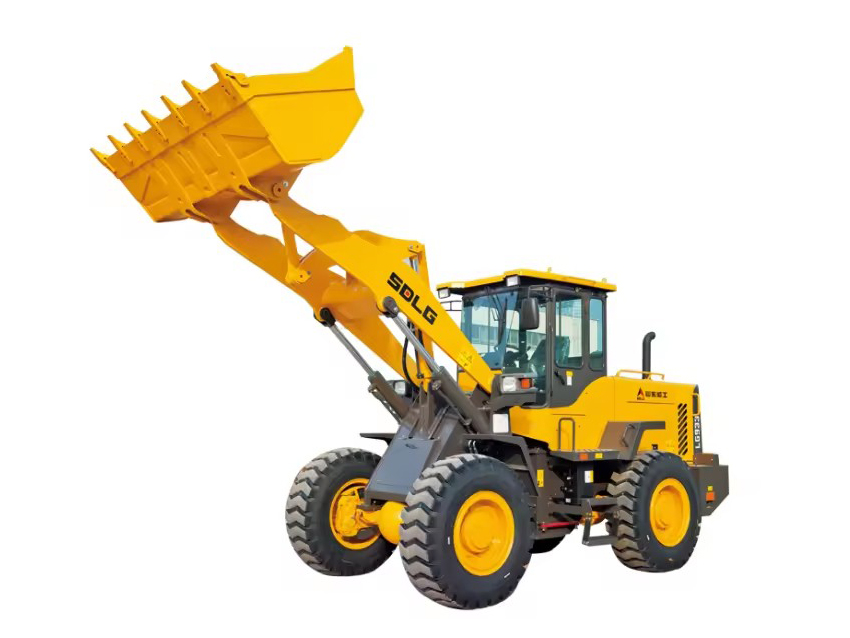

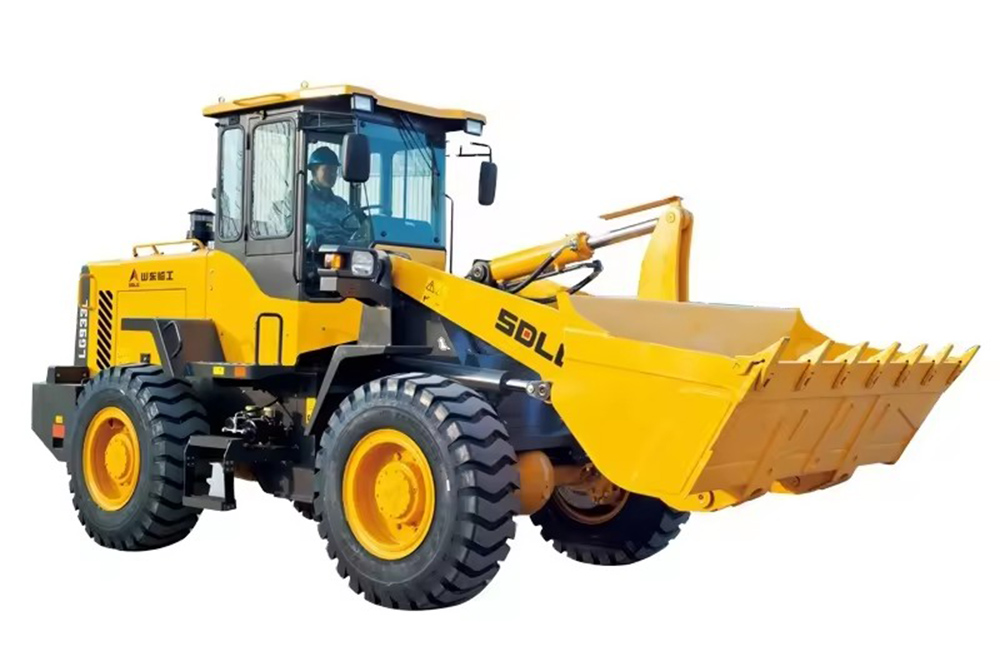

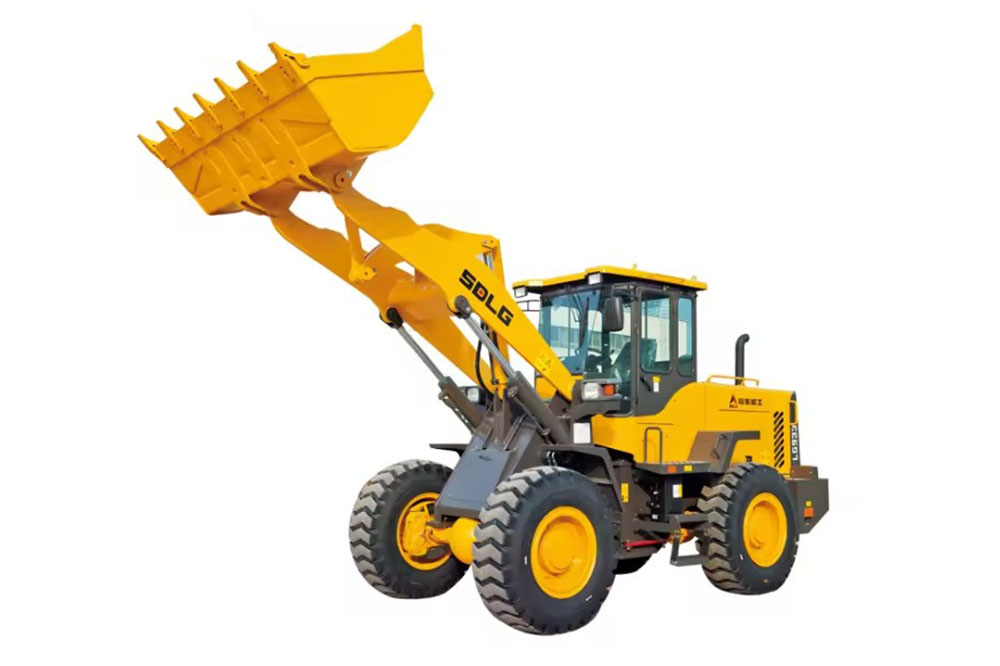

The LG933L is a highly versatile wheel loader designed to handle bulk materials efficiently. Its compact base and impressive cost-performance ratio make it an excellent choice for a wide range of applications, including harbors, construction sites, aggregate plants, and timber yards. This machine is renowned for its large breakout force, small turning radius, and high operating efficiency, providing exceptional flexibility and performance in various working environments.

The LG933L is equipped with a Yuchai turbocharged engine that meets the China II emission standards. This engine is known for its strong power output and high reliability, ensuring consistent performance even under demanding conditions. For added flexibility, the loader can also be equipped with a Weichai DEUTZ engine, which offers similar benefits in terms of power and reliability.

The cooling system of the LG933L features an enlarged radiator and optimized air channels for both the engine and hydraulic system. This advanced design effectively reduces the temperature of the engine water and hydraulic oil, resulting in high cooling efficiency. By maintaining optimal operating temperatures, the cooling system enhances the machine’s overall performance and longevity.

The wheel loader uses an axis-fixed power shift transmission case coupled with a single-turbine three-element hydraulic torque converter. This combination provides a compact structure and high reliability, making the loader easy to maintain. Additionally, the SDLG reinforced drive axle offers increased bearing capacity and enhanced durability, contributing to the machine’s robust performance.

The LG933L incorporates a load-sensing full hydraulic steering system, which ensures light and responsive steering while also providing energy-saving properties. The mechanically-operated hydraulic system for the working device is highly reliable and easy to operate, featuring hydraulic components from well-known brands that ensure high performance and dependability.

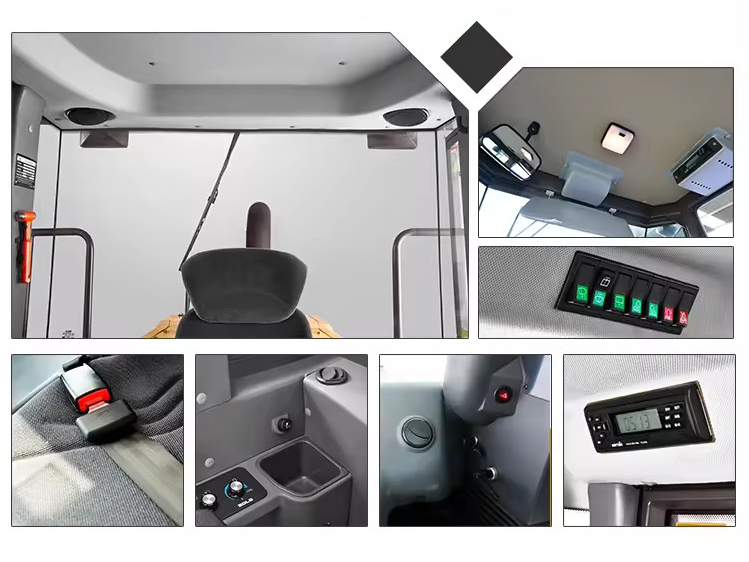

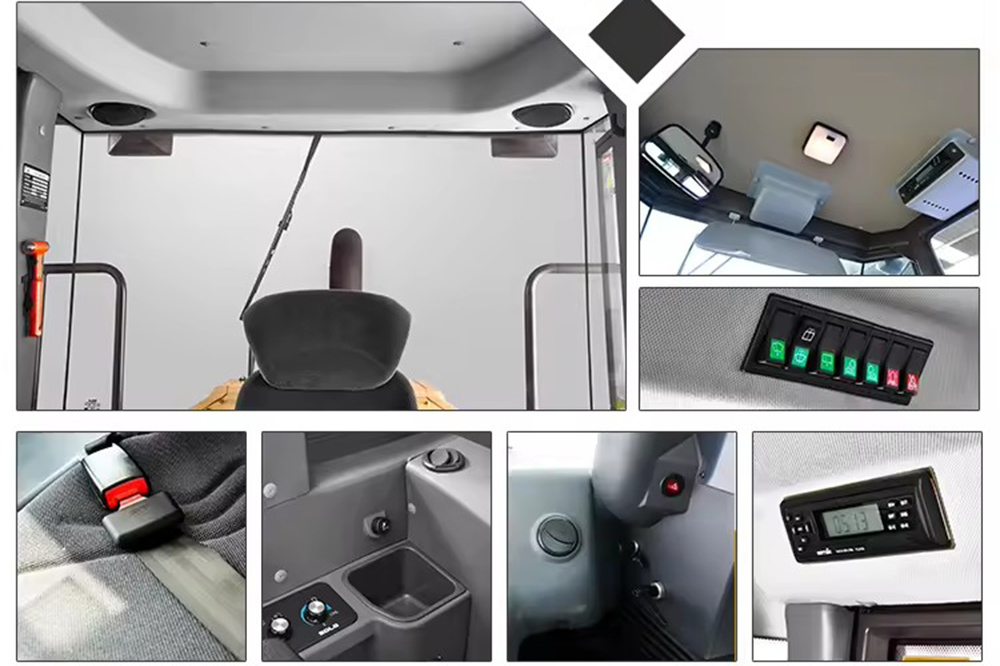

The loader’s new steel structure cab is designed to provide a wide field of vision and a larger operational space. It also offers good sealing performance to protect the operator from external elements. An optional air conditioning system can be installed to enhance comfort, making the cab a pleasant environment for extended periods of operation.

The electrical system of the LG933L utilizes high-end components from SDLG, ensuring stability and reliability. The machine features front and rear reinforced frames that have undergone 200,000 fatigue enhancement tests. This rigorous testing guarantees strong bearing capacity, balanced load distribution, and excellent overall stability.

The bucket of the LG933L is equipped with a protruding cutting board and a thickened bottom antifriction plate. This design reduces cutting resistance, increases the coefficient of fullness, and ensures high efficiency and reliability during operation. The enhanced bucket design contributes to the loader’s overall performance, making it a dependable choice for various material handling tasks.

Engine Performance

Cooling System

Transmission and Axles

Hydraulic Systems

Cab and Comfort

Electrical and Frame Structure

Bucket Design

Product parameters

1. Parameter

2. Dimension

3.Engine

4.Transmission system

5.Steering system

6.Working equipment

7. Oil filling amount

010203

Rated bucket capacity	1.8（opt 1.5～3.0）	Minimum steering radius (outside of rear wheel)	5120mm
Rated carrying-capacity (kg)	3000	Transverse passing radius (outside of bucket)	5945 mm
Maximum traction force (kN)	≥96 kN	altitude	-
Tipping load	≥60 kN	ambient temperature	-
Maximum breakout force	≥96 kN	wading depth	-
Forward I	0～8 km/h	Forward Ⅱ(km/h)	0～14 km/h
Forward Ⅲ(km/h)	0～27 km/h	Forward Ⅳ(km/h)	0～40 km/h
Reverse I (km/h)	0～9 km/h	Reverse II	0～27 km/h
Reverse III	-	Reverse IV	-

Overall length (mm)	6970	Overall width (mm)	2520
Outside width of wheel	2310 mm	Wheel track	-
Overall height (mm)	3240	wheelbase（mm）	2700
Dumping angle	-45°	Maximum dumping height	2950 mm
Number of axles	2	Corresponding dump reach	1050 mm
Maximum lifting height of fork horizontal section (mm)	-	Total mass (kg)	10110
Minimum ground clearance	375 mm	Axis pin at maximum lift height	-
Wheelbase (front/rear) (mm)	-	-	-

Engine model/Drive Motor Model	WP6G125E23	Number of cylinders	6
Engine type	In-line、 water-cooled、 four-stroke	Bore/stroke	105/130 mm
Engine power (KW)	92	Minimum fuel consumption	215 g/kw.h
Rated engine speed	2300 r/min	Maximum torque (N.m)/rotation speed (r/min)	500 N.m
Displacement (ml)	6750	Emission standard	GB 20891-2007 China II emission

Type of torque converter	Single-stage three-element torque converter	Torque ratio	3.27
Oil cooling mode	Air cooling	Oil pressure of torque converter inlet	0.5～0.6 MPa
Oil pressure of torque converter outlet	0.2～0.3 MPa	Transmission type	Counter-shaft power shift
Shifting gears	forward 4 reverse 2	Gear ratio of forward I	3.82
Gear ratio of forward Ⅱ	2.08	Gear ratio of forward Ⅲ	1.09
Gear ratio of forward Ⅳ	0.59	Gear ratio of reverse I	3.05
Gear ratio of reverse II	0.87	Gear ratio of reverse III	-
Gear ratio of reverse IV	-	Model of variable-speed pump	CBGjA2032
Working pressure of shifting	1.1～1.5 MPa	Main drive type	First reduction of spiral bevel gear
Main drive reduction ratio	6.167	Wheel reduction type	One-stage planetary reduction
Wheel reduction ratio	3.12	Drive type	CHANGCHAI four-wheel drive
Tyre size	17.5-25	Front tyre pressure	0.31～0.33 MPa
Rear tyre pressure	0.27～0.29 MPa	Type of foot brake	Air-over-oil caliper disc brake
Brake pressure (MPa)	0.784 MPa	Parking brake type	Manual caliper disc brake

Type of steering system	Load-sensing full hydraulic articulated steering	Model of priority valve	VLH-240S-14
Steering pump model	CBGj3100/1010-XF	Steering cylinder - bore x rod diameter x stroke	HSGF-80×45×327 mm
Steering gear model	BZZ6—630A	Steering angle (°)	36°
Working pressure of steering system	14 MPa	-	-

Type of working device	Hydraulic pilot control	Boom cylinder - bore × rod diameter × stroke	HSGF-125×70×771 mm
Turning bucket cylinder - bore x rod diameter x stroke	HSGF-140×80×502 mm	Model of working pump	CBGj3100/1010-XF
Displacement of working pump (ml/r)	-	Model of multi-way valve	DFSY-25-16
Model of pilot valve	-	Working pressure of working device hydraulic system	16 MPa
Bucket lift time (full load)	≤5.2 s	Bucket fall time (no load)	≤3.0 s
Bucket dumping time (no load)	≤0.8 s	Time sum of three items	≤9.0 s

Diesel filling capacity of fuel tank	140 L	Oil filling capacity of axles (main drive and wheel reducer)	2×18 L
Oil tank filling capacity	130 L	Engine oil filling capacity	14 L
Transmission oil filling capacity	45 L	Refueling of antifreeze coolant	-
Oil filling capacity of braking system	4 L	-	-
