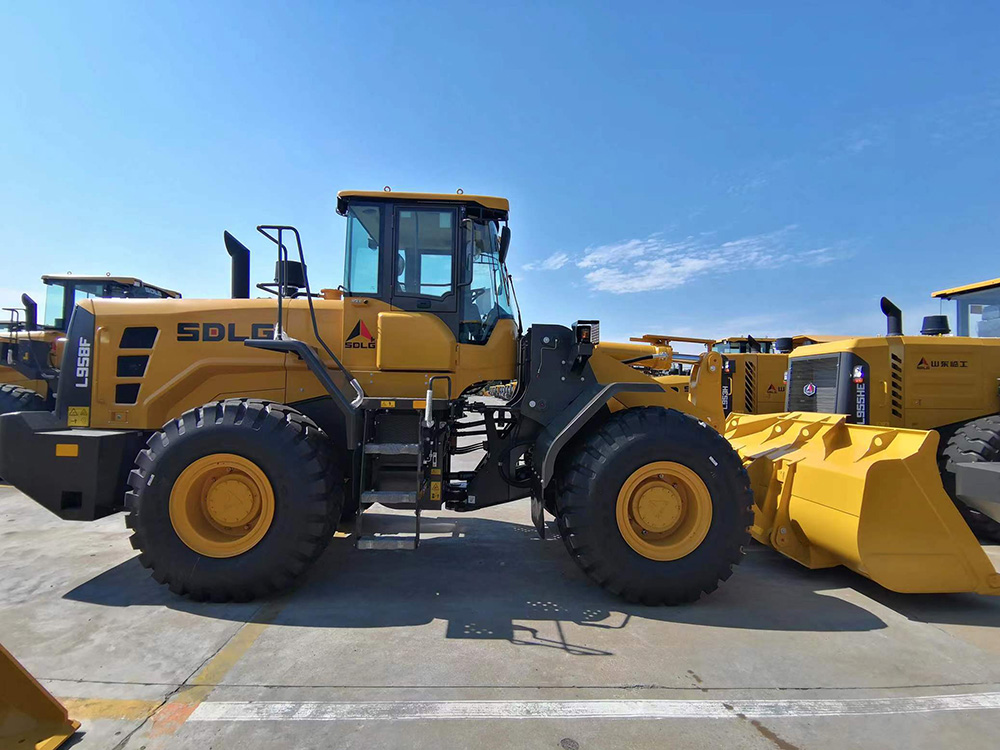

SDLG L958F Loader 5-ton capacity Wheel Loader

SDLG Wheel Loader L958F, a 5-ton capacity loader equipped with a 3.0 cubic meter bucket for sale, ideal for heavy-duty operations with excellent performance and durability.

L958F

Product Introduction

Reliable

Energy-efficient

Comfort and Maintenance

The wheelbase of the L958F has been extended to 3300mm, ensuring that it is well-suited for operation in harsh industrial environments, including mines. The loader is powered by a Weichai engine, featuring a two-stage design that delivers high torque, strong power, low fuel consumption, superior quality, and reduced emissions. As an alternative, the Dalian Deutz BF6M series engines can be selected to meet specific operational needs.

For enhanced performance in dusty environments, the L958F is equipped with a 93-type sand and dust filter, which boasts a primary filtration accuracy exceeding 93%. This feature enhances the machine's reliability and makes it particularly effective in sand and dust-heavy working conditions. Additionally, the VRT200 gearbox increases overall efficiency by more than 8%, utilizing front four and rear four electrohydraulic control shifts with KD function, power cutoff, and shift interlocking function, all of which contribute to high transmission efficiency and smooth, stable operation.

The loader also incorporates a reinforced drive axle with an optimized structure and load distribution, providing a higher bearing capacity, greater reliability, and an extended service life, as proven by market performance. The front transmission shaft is designed with end face teeth and an enlarged cross axle diameter, which together enhance overall strength and transmission torque, further ensuring long-term reliability.

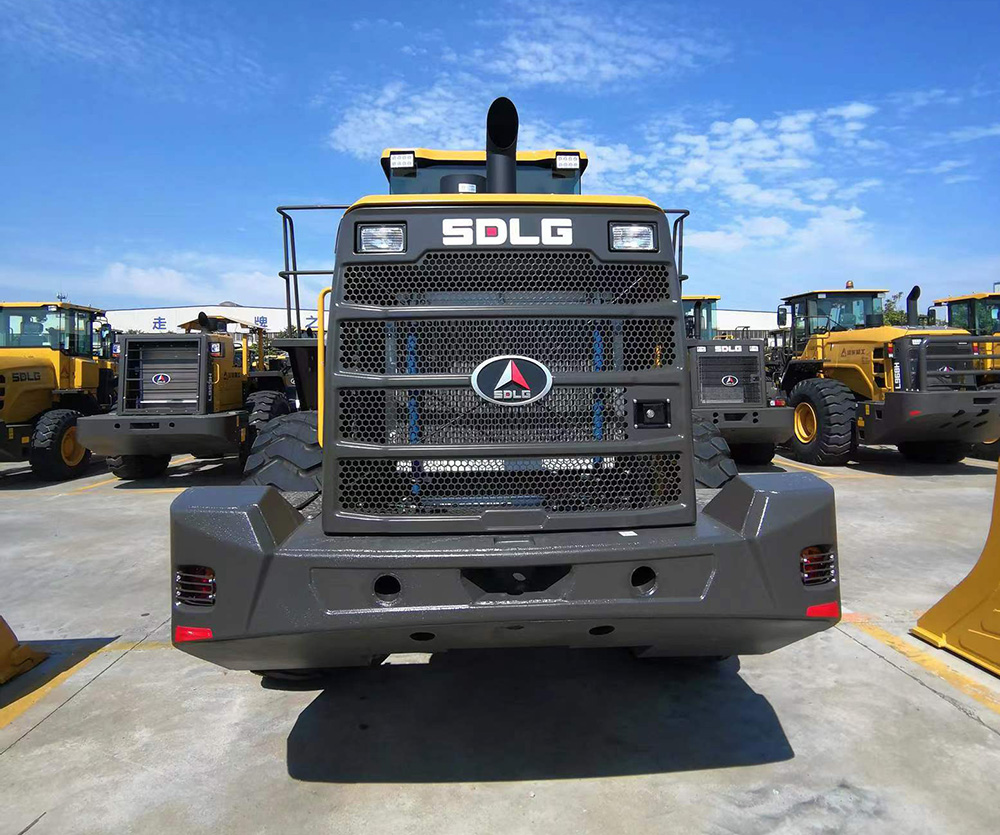

Aesthetically, the L958F features a steel engine hood manufactured using automotive-grade molds. The streamlined design eliminates surface welded points, giving the loader an attractive and imposing appearance. The counterweight is molded into a more powerful shape, offering enhanced reliability and structural integrity. The Parker KM300 multiway valve enhances operational efficiency with smoother and more precise composite actions, large flow, high pressure, and high efficiency.

An intelligent control cooling system is incorporated into the L958F, which reduces energy consumption while maintaining the machine's optimal working temperature, thus ensuring consistent performance and efficiency.

The L958F’s cab has been redesigned to offer a new, more comfortable environment with an expansive field of vision, greatly improving operational efficiency. The concept of "visualization" and "maintenance on ground" has been integrated into the design, simplifying the maintenance process for the entire machine.

Furthermore, the loader features a reinforced oil cylinder with an increased piston rod diameter and imported seals, which effectively prevent external leakage. The design service life of the oil cylinder has been significantly extended from 2000 hours to 4000 hours. The electrical system is centrally controlled, equipped with a fuel gauge and engine tachometer, and capable of displaying fault information on an LCD screen, making monitoring and diagnostics more accessible and efficient.

Product parameters

1. Parameter

2. Dimension

3.Engine

4.Transmission system

5.Steering system

6.Working equipment

7. Oil filling amount

010203

Bucket capacity range (m3)	3.2（opt 2.7～4.5）	Minimum steering radius (outside of rear wheel)	5890 mm
Rated carrying-capacity (kg)	5400	Transverse passing radius (outside of bucket)	6910mm
Maximum traction force (kN)	160kN	Altitude（m）	-
Tipping load	110 kN	Ambient temperature（℃）	-
Maximum breakout force	175	Wading depth（mm）	-
Forward I	0～6.7 km/h	Forward Ⅱ(km/h)	0～12.4 km/h
Forward Ⅲ(km/h)	0～25.9km/h	Forward Ⅳ(km/h)	0～38km/h
Reverse I (km/h)	0～6.8 km/h	Reverse II	0～12.5 km/h
Reverse III	0～26.1 km/h	Reverse IV	0～38.2km/h

Overall length (mm)	8320	Overall width (mm)	3024
Outside width of wheel	2785 mm	Wheel track	-
Overall height (mm)	3410	wheelbase（mm）	3300
Dumping angle	-45°	Maximum dumping height	3150 mm
Number of axles	2	Corresponding dump reach	1200mm
Max. lifting height of fork horizontal section (mm)	-	Total mass (kg)	17400
Minimum ground clearance	420 mm	Axis pin at maximum lift height	4205 mm
wheelbase(front /rear)（mm）	-	-	-

Engine model/Drive Motor Model	WD10G220E21	Number of cylinders	6
Engine type	In-line、 water-cooled、 dry sleeve、 direct injection	Bore/stroke	126/130mm
Engine power (KW)	162	Minimum fuel consumption	215g/kw.h
Rated engine speed	2200 r/min	Maximum torque (N.m)/rotation speed (r/min)	920/1400～1600
Displacement (ml)	9726	Emission standard	GB 20891-2007(Country 2)

Type of torque converter	Single-stage three-element single turbine torque converter	Torque ratio	2.48
Oil cooling mode	Air cooling	Oil pressure of torque converter inlet	0.8～1.0MPa
Oil pressure of torque converter outlet	0.57～0.69MPa	Transmission type	Counter-shaft electric liquid shift
Shifting gears	forward 4 reverse 4	Gear ratio of forward I	4.325
Gear ratio of forward Ⅱ	2.383	Gear ratio of forward Ⅲ	1.028
Gear ratio of forward Ⅳ	0.650	Gear ratio of reverse I	4.287
Gear ratio of reverse II	2.361	Gear ratio of reverse III	1.019
Gear ratio of reverse IV	0.645	Model of variable-speed pump	HPT2-50
Working pressure of shifting	1.9～2.3	Main drive type	First reduction of spiral bevel gear
Main drive reduction ratio	4.625	Wheel reduction type	One-stage planetary reduction
Wheel reduction ratio	4.94	Drive type	CHANGCHAI four-wheel drive
Tyre size	23.5-25	Front tyre pressure	0.39±0.01 MPa
Rear tyre pressure	0.33±0.01 MPa	Type of foot brake	Air-over-oil caliper disc brake
Brake pressure (MPa)	0.784	Parking brake type	Electric air-controlled caliper disc brake

Type of steering system	Load-sensing full hydraulic articulated steering	Model of priority valve	VLH-240S-16
Steering pump model	Twin pump 112/10	Steering cylinder - bore x rod diameter x stroke	HSGL-9050480
Steering gear model	Xcel80-1000	Steering angle (°)	38°
Working pressure of steering system	16 MPa	-	-

Type of working device	Hydraulic pilot control	Boom cylinder - bore × rod diameter × stroke	HSGF-17090757
Turning bucket cylinder - bore x rod diameter x stroke	HSGF-200105550	Model of working pump	HPT3-63
Displacement of working pump (ml/r)	63	Model of multi-way valve	KM300-II-19A
Model of pilot valve	PCL403-35-B	Working pressure of working device hydraulic system	19MPa
Bucket lift time (full load)	≤5.7 s	Bucket fall time (no load)	≤3.7 s
Bucket dumping time (no load)	≤1.2 s	Time sum of three items	≤10.6 s

Diesel filling capacity of fuel tank	300 L	Oil filling capacity of axles (main drive and wheel reducer)	2×30 L
Oil tank filling capacity	240 L	Engine oil filling capacity	20 L
Transmission oil filling capacity	17.1/4.7	Refueling of antifreeze coolant(L)	55L
Oil filling capacity of braking system	4	-	-
