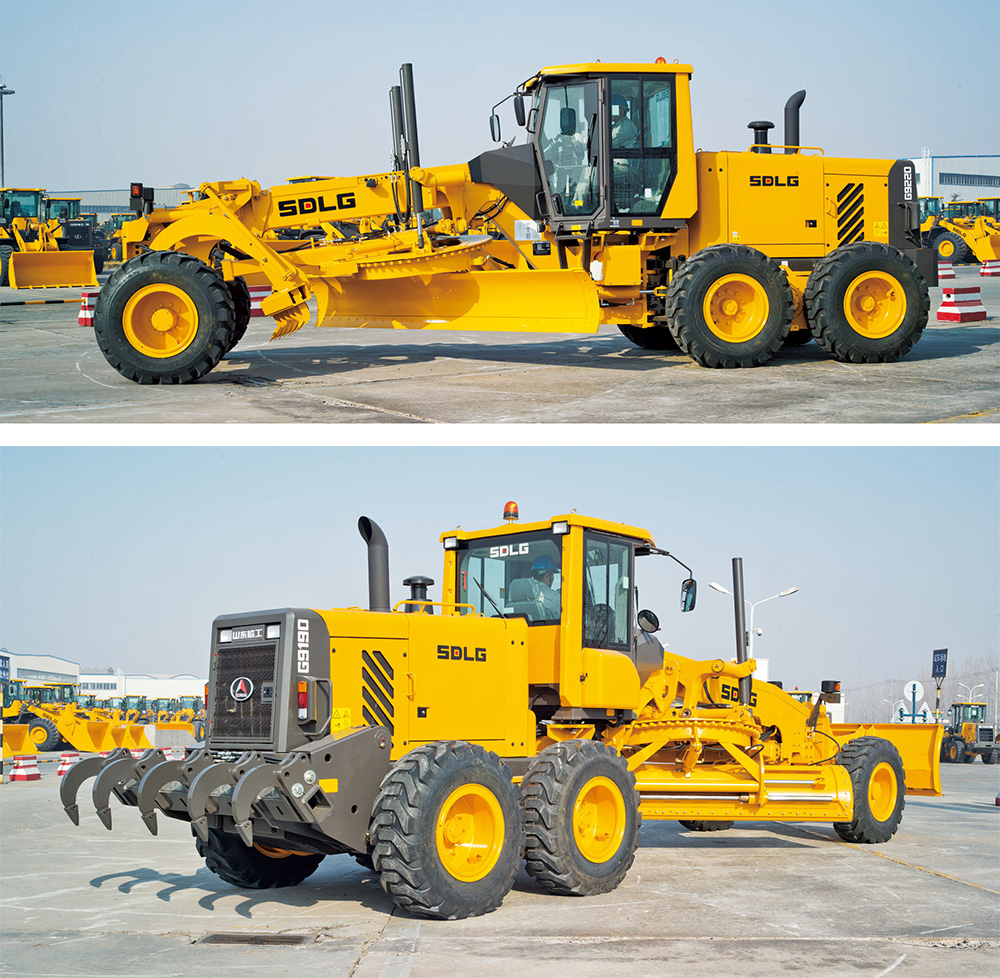

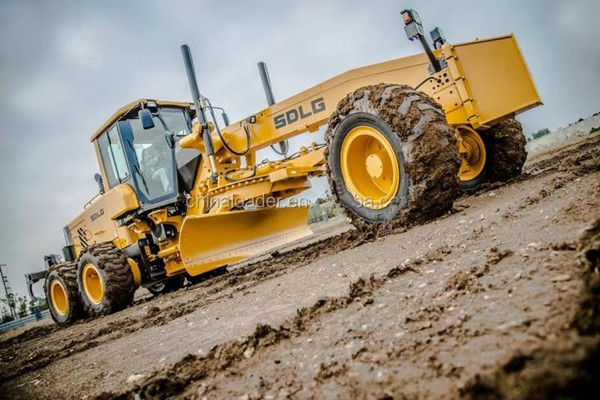

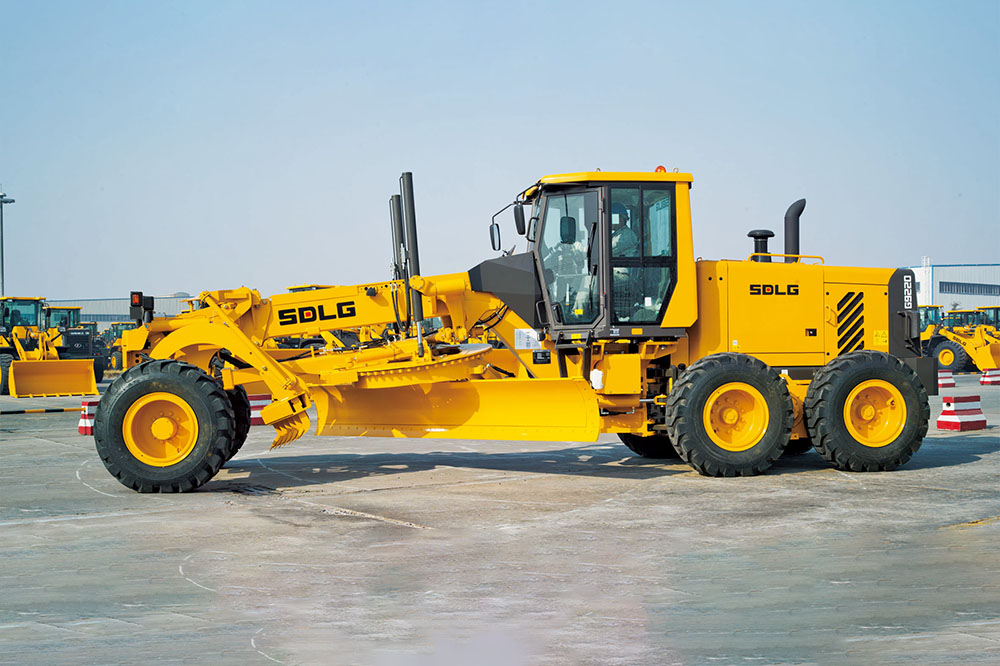

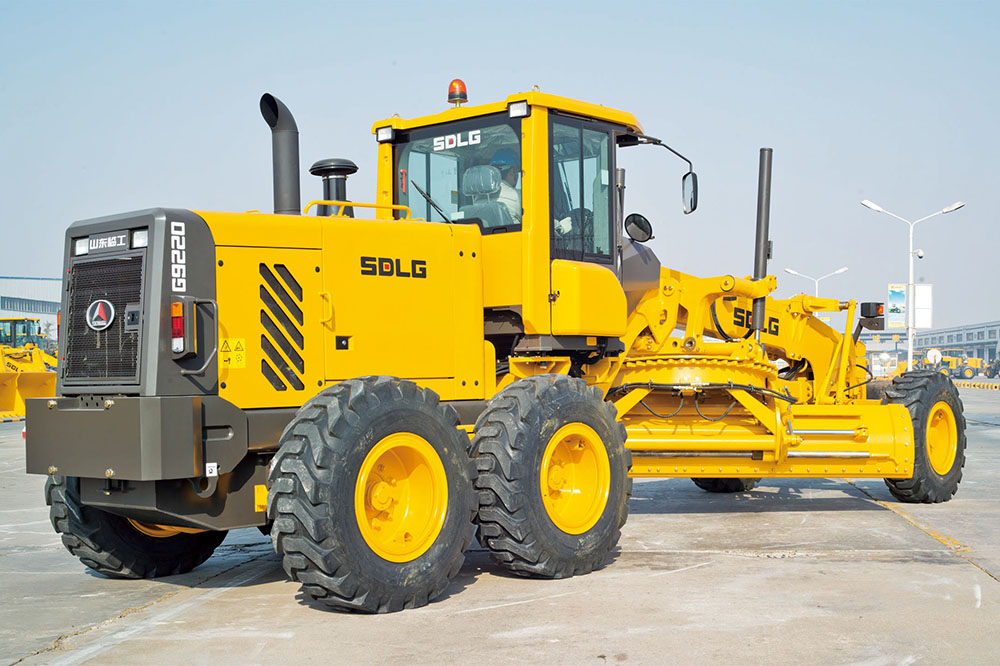

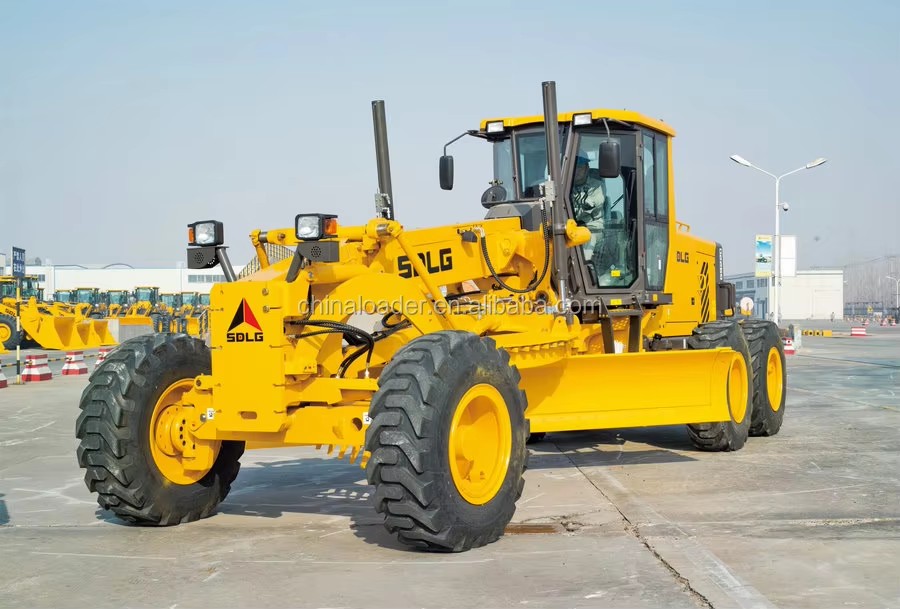

SDLG G9290 Grader high efficiency motor grader

The SDLG G9290 motor grader boasts a robust 290HP engine and includes a rear ripper attachment. Designed for heavy-duty grading and earth-moving, it delivers impressive power and versatility, making it ideal for a range of demanding construction tasks.

G9290

Product Introduction

1. The SDLG new ROPS/FOPS cab offers excellent visibility and operator comfort, enhancing efficiency and performance with its enhanced design.

2. The SDLG SD130B Stage III diesel engine provides high torque at low revs and outstanding fuel efficiency with Variable Horse Power technology.

3. The cooling package features an operator-controlled reversible fan for efficient temperature regulation.

4. Maintenance is simplified with large, openable rear doors providing easy access.

5. The SDLG HTE840S transmission, designed by Volvo, includes 8 forward speeds, 4 reverse speeds, and a specialized grader transmission.

6. The heavy-duty chain-driven tandem features a differential lock on the rear axle and durable tandem bearings.

7. The SDLG dual cylinder turning circle and wide-stance lift cylinders ensure optimal grading performance and stability, reducing rework and improving surface finish.

8. The variable displacement axial piston pump feeds oil to a proportional demand closed-center load sensing main control valve, offering precise blade control.

9. The 14-foot moldboard blade provides extensive mobility with rotation, side-shifting, and tilting capabilities for effective banking and ditching.

10. The heavy-duty front axle's mobility helps maintain a level moldboard for a superior finished grade.

11. The durable frame is factory-prepared to accommodate all types of attachments.

Product parameters

1. Parameter

2. Dimension

3.Engine

4.Transmission system

5.Steering system

6. Steering system

7. Oil filling amount

010203

Total mass (kg)	23000	Minimum steering radius (m)	8.25
Weight on front axle (kg)	6500	Blade lifting height (mm)	450
Weight on rear axle (kg)	16500	Blade cutting depth (mm)	825
Maximum inclination angle of front wheel (°)	±18	Blade cutting angle (forward) (°)	40
Maximum swinging angle of front axle (°)	±16	Blade cutting angle (backward) (°)	5
Maximum steering angle of front wheel (°)	±50	Blade tilt angle (°)	90
Steering angle of frame joint (°)	±21	Side shifting distance of blade (mm)	673/673
Cutter diameter (mm)	1626	Maximum traction force (kN)	145.5
Blade specification (mm)	4267×680×25	Blade slewing angle (°)	360
Speed of forward I (km/h)	3.8	Speed of forward Ⅱ (km/h)	5.3
Speed of forward Ⅲ (km/h)	7.5	Speed of forward Ⅳ (km/h)	10.4
Forward Ⅴ(km/h)	14.8	Forward Ⅵ(km/h)	22.7
Forward Ⅶ(km/h)	31.8	Forward Ⅷ(km/h)	44.2
Speed of reverse Ⅰ (km/h)	3.8	Speed of reverse II (km/h)	7.5
Speed of reverse Ⅲ (km/h)	14.8	Speed of reverse IV (km/h)	31.8
Speed of reverse V (km/h)	-	Speed of reverse Ⅵ (km/h)	-

Overall length (mm)	10170	Wheel track	2390
Overall width (mm)	2910	wheelbase（mm）	7080
Overall height (mm)	3390	Tandem center distance (mm)	1648
Ground clearance of front axle (mm)	610	Ground clearance of rear axle (mm)	560

Engine model/Drive Motor Model	SD130B13-130	Number of cylinders	6
Engine type	In-line、 water-cooled、 four-stroke、 direct injection	Bore/stroke（mm）	131/158
Engine power (KW)	211	Rated power (KW)	211
Minimum fuel consumption(g/kW.h)	-	Rated rotation speed (r/min)	2100
Maximum torque (N.m)/rotation speed (r/min)	1290/900～1500	Displacement (ml)	12780
Emission standard	GB 20891-2014（China Ⅲ emission）	-	-

Model of hydraulic converter	-	type of hydraulic converter	-
Diameter of hydraulic converter circulating circle (mm)	-	Torque ratio at hydraulic converter stall	-
Transmission model	HTE840S	Transmission type	Mechanical power shift gearbox
Operation mode of transmission	Manual automatic gear shifting	Oil pressure of transmission shifting operation (MPa)	1.6
Shifting gears	Eight in front and four behind	Gear ratio of transmission forward I	7.247
Gear ratio of transmission forward Ⅱ	5.188	Gear ratio of transmission forward Ⅲ	3.697
Gear ratio of transmission forward Ⅳ	2.647	Gear ratio of transmission forward Ⅴ	1.863
Gear ratio of transmission forward Ⅵ	1.334	Gear ratio of transmission forward Ⅶ	0.951
Gear ratio of transmission forward Ⅷ	0.681	Gear ratio of transmission reverse I	7.633
Gear ratio of transmission reverse Ⅱ	3.758	Gear ratio of transmission reverse Ⅲ	1.894
Gear ratio of transmission reverse Ⅳ	0.966	Total reduction ratio	18.502
Final ratio of drive axle	2.533	Wheel reduction ratio of drive axle	6
Tandem reduction ratio	1.2174	Tyre size	20.5-25
Rim	17.00/2-25	Tyre pressure of front axle (MPa)	0.28
Tyre pressure of rear axle (MPa)	0.28	service brake press（MPa）	8.2

Type of hydraulic pressure	REXROTH	Main pump model	A10V0100
Main pump displacement (ml/r)	100	System pressure (Mpa)	20
Setting pressure of safety valve of Husco multi-way valve (MPa)	25	Setting pressure of overload valve of Husco multi-way valve (MPa)	-
Nominal flow rate of Husco multi-way valve (L/min)	-	Rotary valve	Mico Rotary valve
Specification of front wheel tilt cylinder	100×50×169-473 mm	Specification of front wheel steering cylinder	63×45×340-577 mm
Specification of locking cylinder	100×60×63.5 mm	Specification of slewing cylinder	75×35×343-594 mm
Specification of blade sideshift cylinder	100×60×1266-1794 mm	Specification of blade swinging cylinder	100×60×635-974 mm
Specification of blade lifting cylinder	100×60×1270-595 mm	Specification of steering articulated cylinder	125×50×224-595 mm
Specification of blade angle-varying cylinder	100×50×265-620 mm	-	-

Type of steering system

Diesel filling capacity of fuel tank	410 L	Gear oil filling capacity of rear axle housing	23 L
Oil tank filling capacity	120 L	Gear oil filling capacity of rear axle tandem	26（unilateral） L
Oil filling capacity of engine oil pan	53.5 L	Gear oil filling capacity of rear axle wet brake oil chamber	4*4 L
Filling capacity of water radiator antifreeze coolant	60 L	Filling capacity of transmission oil	60 L
