Breaking stones into gold, governing mountains and rivers with wisdom - Decoding SDLG E6600HB Hammer King

In the field of mining construction, an efficient and durable equipment is the key to improving operational efficiency and ensuring construction safety. SDLG E6600HB Hammer King, as a heavy-duty excavator designed specifically for crushing conditions, has become a reliable assistant in mining construction due to its excellent performance and user-friendly design.

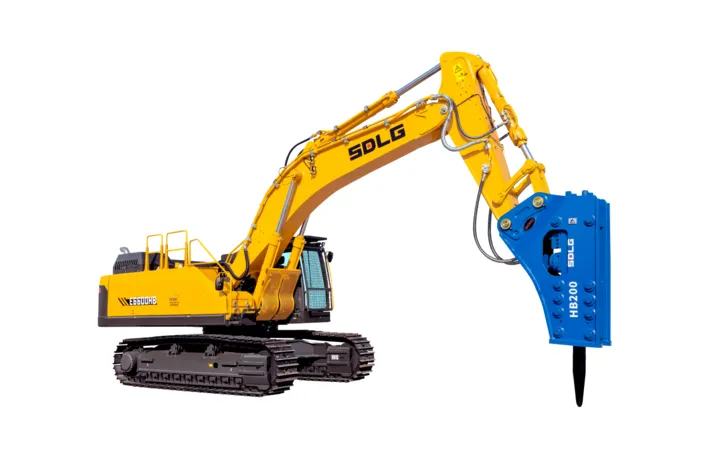

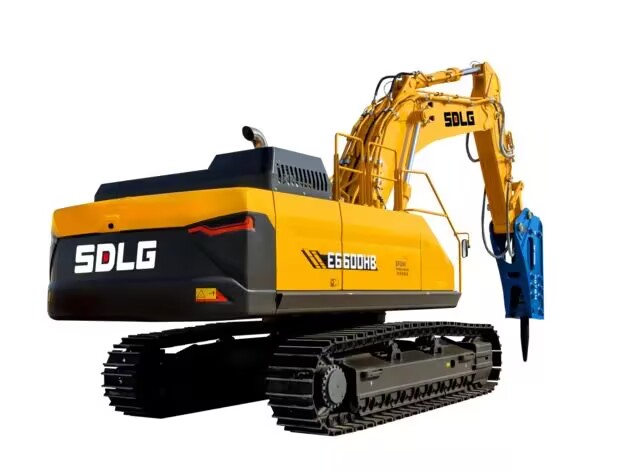

The SDLG E6600HB Hammer King has a total weight of 62 tons, with a rugged appearance and smooth lines, showcasing a sense of power that is neither angry nor intimidating. Its specialized structural design for crushing conditions adopts customized structural component plates, combined with advanced manufacturing processes worldwide, making the whole machine highly resistant to impact and capable of stable operation in harsh mining environments. The chassis, key main beams on the rack, and critical load-bearing areas have all been thickened and reinforced, with strong load-bearing capacity. The overall structure of the boom has been strengthened, and the bucket rod has been thickened in multiple places, effectively improving the service life and reliability of the entire machine.

The E6600HB Hammer King is equipped with the Fukang X12CS4430 engine, which has a power of up to 321kW. This engine has been professionally tuned and matched by SDLG, and is efficient and powerful in breaking, making it easy to deal with various hard bones. At the same time, the engine and hydraulic system are carefully matched to achieve a balance between high efficiency and low fuel consumption in low-speed working areas, saving users a lot of operating costs.

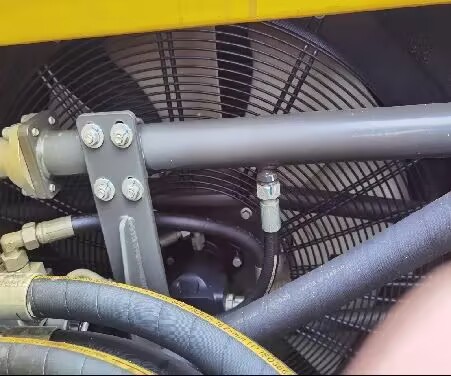

The E6600HB Hammer King adopts a fully electronic hydraulic system, further optimizing the pipeline layout by replacing the pilot pipeline with a wire harness connection, making the oil circuit simpler, reducing pressure loss, and saving fuel and efficiency. At the same time, the hydraulic oil cooling pump is a variable pump that can adjust the oil output according to the oil temperature, achieving precise control, energy saving, and noise reduction. It is worth mentioning that with the efforts of the SDLG technical team, the problem of hydraulic oil dispersion being constantly subjected to high pressure has been solved, effectively extending its service life. In addition, the reversible oil dispersing fan ensures both heat dissipation and dust removal, meeting the needs of different operating conditions.

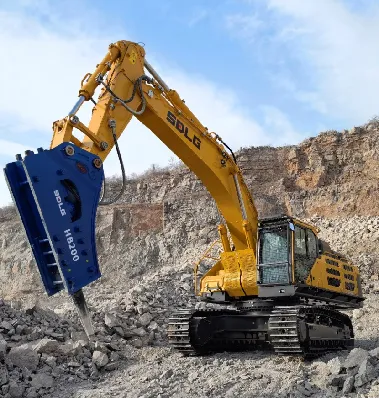

E6600HB Hammer King comes standard with a 200mm diameter breaking hammer, which has a strong breaking force and high efficiency. Its single and dual pump dual-mode crushing function provides users with convenience. Single pump mode can be selected for billing by shift, and dual pump mode can be selected for billing by ton. One click switching can meet the diversified needs of different working conditions. When operating in single pump mode, the P1/P2 dual pumps automatically alternate operation, effectively extending the life of the main pump.

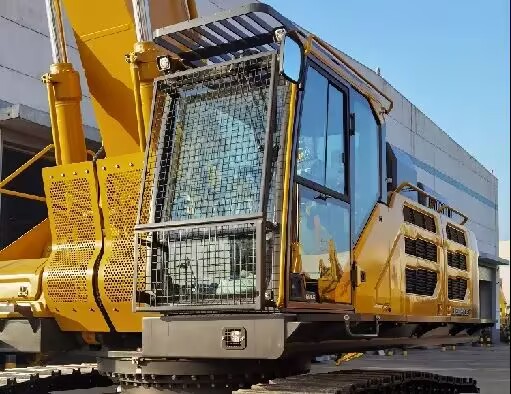

In terms of humanized design, E6600HB Hammer King has also done quite well. The cab is made of special-shaped high-strength steel structure, with fully sealed design at the top and front, effectively improving the sealing performance of the cab. The design of the protective net at the front and lower part of the boom cylinder effectively protects the safety of the driver during mining construction. High end suspended seats with heating configuration, adjustable from multiple angles, equipped with heating function, not afraid of severe winter cold, very user-friendly.

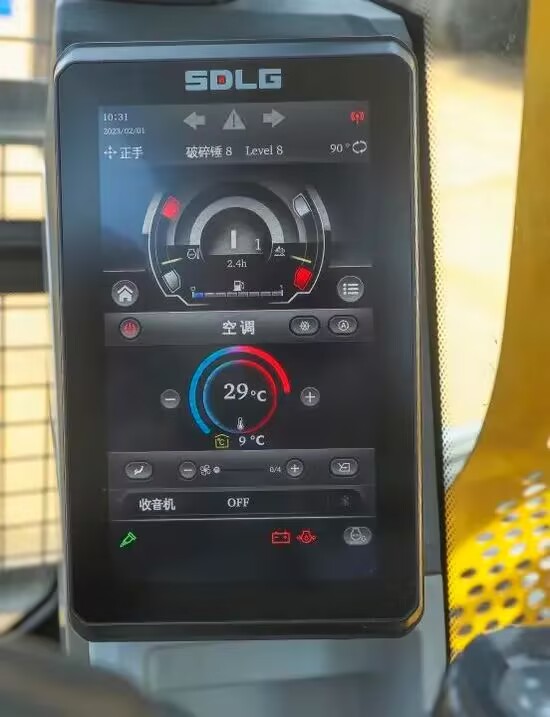

Equipped with an 8-inch LCD color touch screen as standard, the buttons and touch screen can be operated in both directions. Through the display screen, intelligent operations such as variable cooling fan forward and reverse rotation, and one key switch between forward and reverse rotation can be performed. The right pilot console integrates multi-level switches such as page flipping, throttle, high and low speed, maximum power, etc., which are within reach and easy to operate.

SDLG E6600HB Hammer King has demonstrated strong competitiveness in the field of mining construction. Whether in terms of power system, hydraulic system, or design, it can be regarded as a mining iron diamond that integrates appearance, power, comfort, and intelligence. As an efficient and durable mining construction equipment, the E6600HB Hammer King is unbeatable in operation, showcasing its sharpness!
